61 13... Removing and installing/replacing fibreoptic cable connector

IMPORTANT: Comply with notes and instructions on handling optical waveguides .

Necessary preliminary tasks:

Remove trim on C-pillar at bottom left .

Slacken nut (2).

Feed fibre optic cable (1) out of holder (3).

Unlock catch on fibre-optic cable connector (4) with a suitable tool (5).

Remove fibre-optic cable connector (4) in direction of arrow from bracket (3).

Fig 1: Remove Fibre-Optic Cable Connector In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

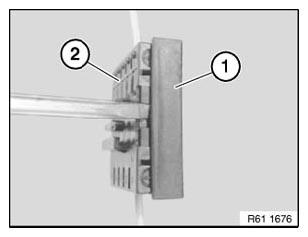

Carefully raise cover cap (1) with a suitable tool and remove from fibre-optic cable connector (2).

Fig 2: Raise Cover Cap And Remove Fibre-Optic Cable Connector

Courtesy of BMW OF NORTH AMERICA, INC.

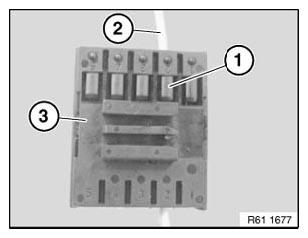

Carefully raise lock (1) and pull fibre-optic cable (2) out of fibreoptic cable connector (3).

Installation:

Make sure fibre-optic cable (2) is correctly seated and engaged in fibre-optic cable connector (3).

Fig 3: Identifying Fibre-Optic Cable And Fibre-Optic Cable Connector

Courtesy of BMW OF NORTH AMERICA, INC.
