41 00... Stamping Vehicle Identification Number

Special tools required:

41 0 000
41 1 190
41 1 191
41 1 192

NOTE: If the stamped vehicle identification number is removed during repair work, it must be stamped in again.
Read and comply with GENERAL INFORMATION .

Necessary preliminary tasks:

Remove FRONT RIGHT SPRING STRUT .

Special tool kit 41 1 190 for stamping vehicle identification number consists of:

Guide plate 41 1 191

Counter-plate 41 1 192

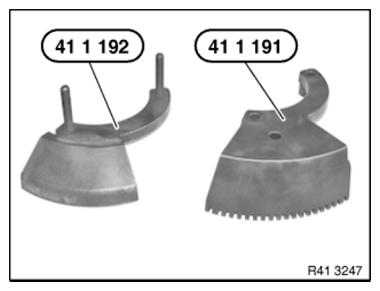

Fig 1: Identifying Guide Plate (41 1 191) And Counter-Plate (41 1 192)

Courtesy of BMW OF NORTH AMERICA, INC.

Position counter-plate 41 1 192 at bottom on spring strut dome.

Position guide plate 41 1 191 at top on spring strut dome and tighten down screws (1).

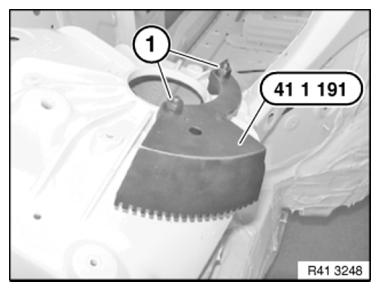

Fig 2: Positioning Guide Plate (41 1 191) At Top On Spring Strut Dome

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The illustration is a schematic representation and is to be applied to the relevant vehicle type.

Insert punch numbers 41 0 000 (1) individually into guide plate (2) and stamp vehicle identification number.

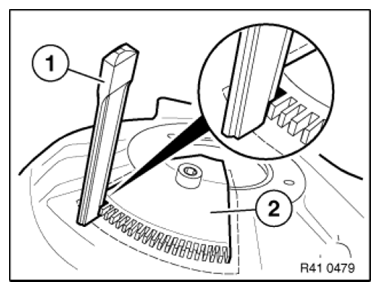

Fig 3: Inserting Punch Numbers (41 0 000) Into Guide Plate

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In the event of component or body replacement by the workshops/garages, clearly delimit the vehicle identification number at front and rear by stamping a "+" in place of the BMW emblem.
Note national regulations.
