61 14... Removing and installing/replacing engine compartment B+ terminal

Necessary preliminary tasks

• Read fault memory.
• Clamp off BATTERY NEGATIVE LEAD

Remove cover (1).

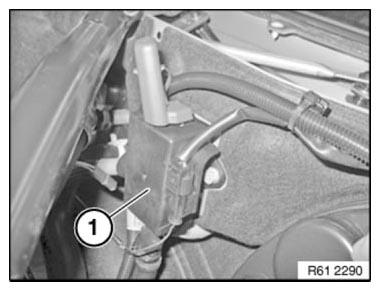

Fig 1: Identifying Engine Compartment Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 61 12 4AZ .

Disconnect battery positive leads (2).

Release screw (3).

Remove B+ terminal.

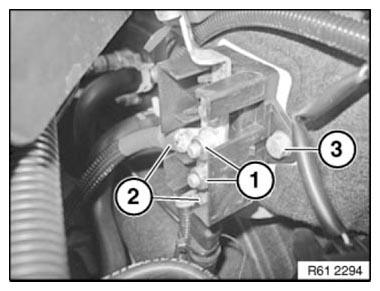

Fig 2: Identifying Battery Positive Leads With Nuts And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
