Wheel misalignment

Angle by which one front wheel is displaced more towards front or rear than the other front wheel. The wheel offset angle is positive when the right wheel is displaced towards the front and negative when it is displaced towards the rear.

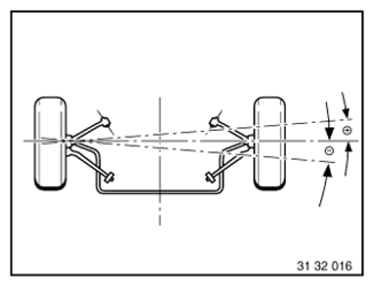

Fig 1: Identifying Wheel Misalignment
G06889632Courtesy of BMW OF NORTH AMERICA, INC.
