61 14... Removing and installing/replacing B+ terminal (engine compartment)

Special tools required:

Necessary preliminary tasks:

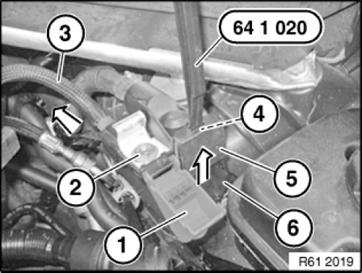

Open cover (1).

Release screw (2). Tightening torque 61 12 4AZ .

Feed battery positive lead (3) in direction of arrow out of B+ terminal (5).

Release catch (4) with special tool 64 1 020 .

Detach B+ terminal (5) in direction of arrow from holder (6).

Fig 1: Removing Battery Positive Lead From B+ Terminal

Courtesy of BMW OF NORTH AMERICA, INC.

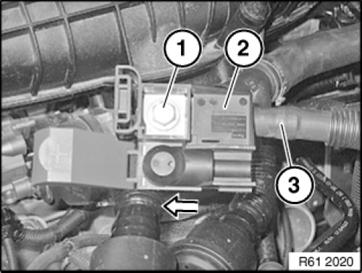

Release screw (1). Tightening torque 61 12 4AZ .

Remove B+ terminal (2) in direction of arrow from battery positive lead (3).

Fig 2: Removing B+ Terminal From Battery Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.
