61 34... Removing and installing/replacing socket in rear console

Necessary preliminary tasks:

• Remove REAR CONSOLE .

Unlock catches (1) with a suitable tool.

Press socket (2) in direction of arrow out of rear console (3).

Feed wiring harness (4) out of rear console (3) and remove socket (2).

Installation:

Make sure socket (2) is correctly seated in rear console (3).

Make sure wiring harness (4) is laid correctly.

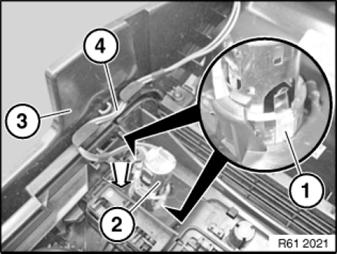

Fig 1: Pressing Socket From Rear Console

Courtesy of BMW OF NORTH AMERICA, INC.
