61 13... Crimping Micro Quadlock System contacts (MQS)

Special tools required:

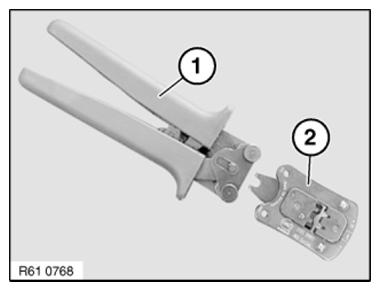

To crimp MPQ contacts, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 324 (2) from crimping set 61 4 320 .

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

Fig 1: Identifying Crimping Special Tool (61 4 320)

Courtesy of BMW OF NORTH AMERICA, INC.

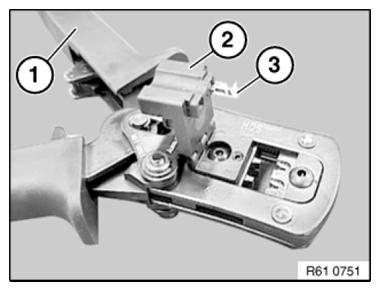

Open pliers (1).

Fold up contact carrier (2).

Insert MQS contact (3) in contact carrier (2).

Fold back contact carrier (2).

Fig 2: Inserting MQS Contact In Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING AND STRIPPING INSULATION from cables.

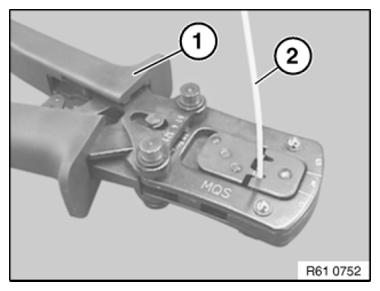

Close pliers (1) one notch.

Insert stripped cable (2).

Close pliers (1) fully.

Fig 3: Cutting Stripped Cable Using Plier

Courtesy of BMW OF NORTH AMERICA, INC.

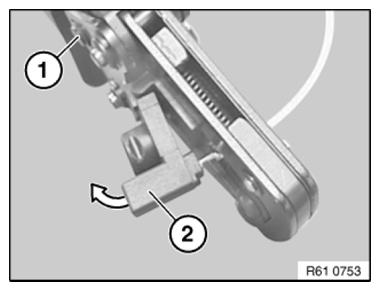

Open pliers (1).

Open contact carrier (2) gently and carefully remove MQS contact.

Fig 4: Removing MQS Contact

Courtesy of BMW OF NORTH AMERICA, INC.
