61 13... Removing and installing/replacing fibre-optic cable connector

Necessary preliminary tasks:

• E70:

  Remove side section on rear seat backrest on left.

• E70 (with 3rd seat row)/E71:

  Remove TRIM ON C-PILLAR AT BOTTOM LEFT .

Slacken nut (2).

Feed fibre optic cable (1) out of holder (3).

Unlock catch on fibre-optic cable connector (4) with a suitable tool (5).

Remove fibre-optic cable connector (4) in direction of arrow from bracket (3).

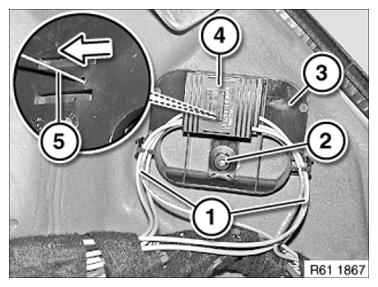

Fig 1: Removing Fibre-Optic Cable Connector From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully raise cover cap (1) with a suitable tool and remove from fibre-optic cable connector (2).

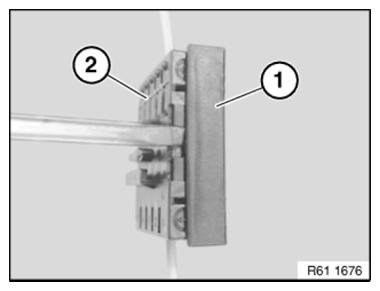

Fig 2: Removing Cover Cap From Fibre-Optic Cable Connector Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully raise lock (1) and pull fibre-optic cable (2) out of fibre-optic cable connector (3).

Installation:

Make sure fibre-optic cable (2) is correctly seated and engaged in fibre-optic cable connector (3).

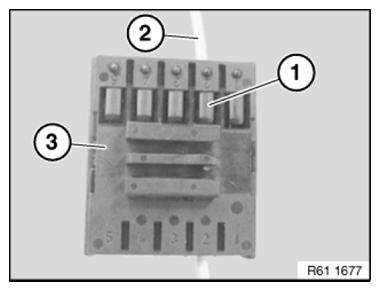

Fig 3: Identifying Fibre-Optic Cable, Connector And Lock

Courtesy of BMW OF NORTH AMERICA, INC.
