Functional networking of the suspension control systems
The signals of the Integrated Chassis Management (ICM) and the Dynamic Stability Control (DSC) interact functionally for the distribution of the locking torque at the rear axle.
The Dynamic Stability Control (DSC) remains the deciding control unit for decisions regarding the stabilization of the drivability. In this case, the Dynamic Stability Control (DSC) request a defined locking torque for the stabilization of the vehicle. The opening of the lock is thus suppressed. In the process, the Integrated Chassis Management (ICM) makes signals available via the longitudinal acceleration, lateral acceleration and yaw rate.

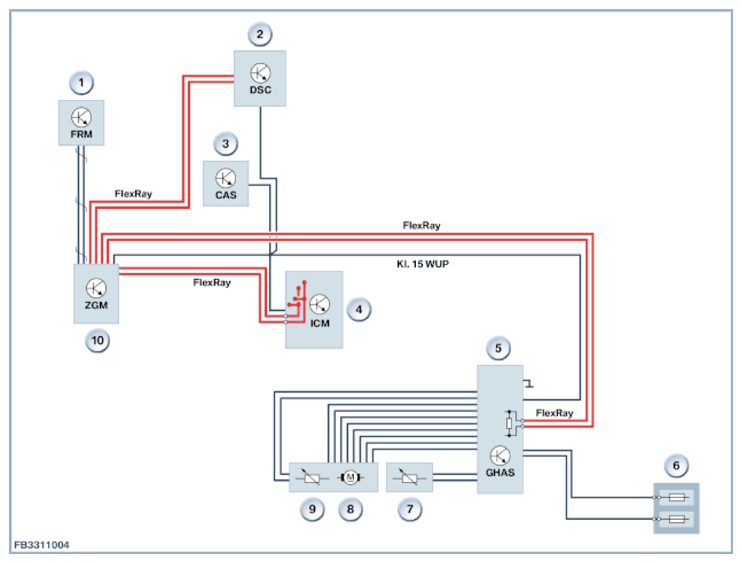

| Index | Explanation |
|---|---|
| 1 | Footwell module (FRM) |
| 2 | Dynamic stability control (DSC) |
| 3 | Car access system (CAS) |
| 4 | Integrated chassis management (ICM) |
| 5 | Regulated differential lock control unit (GHAS) |
| 6 | Rear power distribution box |
| 7 | Temperature sensor in the rear axle differential |
| 8 | Servomotor with hall effect sensor and reduction gear |
| 9 | Temperature sensor on the circuit board of the servomotor |
| 10 | Central gateway module (ZGM) |
The following information is obtained from the control units involved:
- Car access system (CAS)
Terminal control
- Digital engine electronics
Engine function, pedal sensor position and drive torque
- Dynamic stability control (DSC)
Wheel speed and torque distribution
- Integrated chassis management (ICM)
Lateral acceleration, driving speed, gradient and steering angle
- Junction Box Electronics (JBE)
Vehicle condition
- Instrument panel (KOMBI)
Date, time, ambient temperature and kilometer reading
- Central gateway module (ZGM)
Data exchange with the network components
