Necessary preliminary work

Remove right cowl panel cover.

Picture shows the left side, the procedure for the right side is identical.

Lever expander rivets (1) out of cover (2).

Installation note:

If necessary, replace damaged expanding rivets.

Make sure holders (3) are correctly seated.

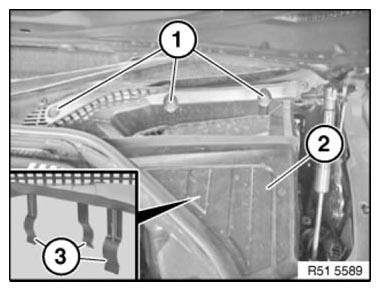

Fig 1: Identifying Rivets, Cover And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 12 90 4AZ .

Release retainer (2).

Remove cover (3) from supplementary electronics box.

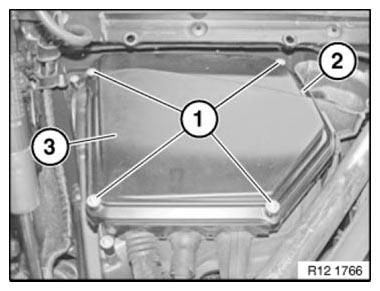

Fig 2: Identifying Supplementary Electronics Box Cover, Retainer And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip grommet hold-down device (1).

Detach rubber grommets (2) from electronics box add-on.

Installation note:

Make sure grommets are correctly seated (watertightness).

Release carrier plate (3) from lower section of supplementary electronics box (5) and set aside.

Release screw (4).

Tightening torque 12 90 2AZ .

Remove the lower section of the supplementary electronics box (5).

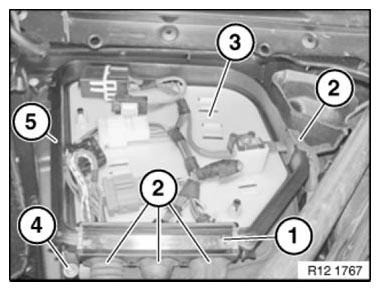

Fig 3: Identifying Grommet Hold-Down Device, Electronics Box Rubber Grommets, Carrier Plate And Supplementary Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.
