Component Protection Active In Head Unit (SI B65 13 16)

Publication date: 2023-07-24
Reference number: SI B65 13 16

COMPONENT PROTECTION ACTIVE IN HEAD UNIT

SERVICE CAMPAIGN BULLETIN

Reference Number(s): SI B65 13 16, Date of Issue: July 24, 2023

BMW:	ALL With Head Units HU-H2, HU-H3, HU-H4, HU-B2

SERVICE INFORMATION

This Service Information Bulletin (Revision 6) replaces SI B65 13 16 dated June 2018 .

What's New (Specific text highlighted):

Revision of Title
Complete Bulletin revision

SITUATION

After a head unit or BDC/BCP is swapped, many functions or features in the head unit are not active and the fault "B7F87A: Component Protection Active" is stored in the head unit.

CAUSE

Security functions included in the listed head units will deactivate (lock mode) all FSC* Enabling Codes if removed and swapped into a new vehicle. This security feature is called "Trusted VIN" or "Head Unit Component Protection".

*German acronym Freischalt Code

CORRECTION

All authorized FSC Enabling Codes will need to be reactivated and Head Unit Component Protection will need to be reinitialized.

PROCEDURE

Create a TSARA case with Technical Support to request the recreation of FSC Enabling Codes and certificates for the vehicle.

After the FSC Enabling Codes and certificates have been recreated, follow the next steps:

Connect the battery charger to the vehicle

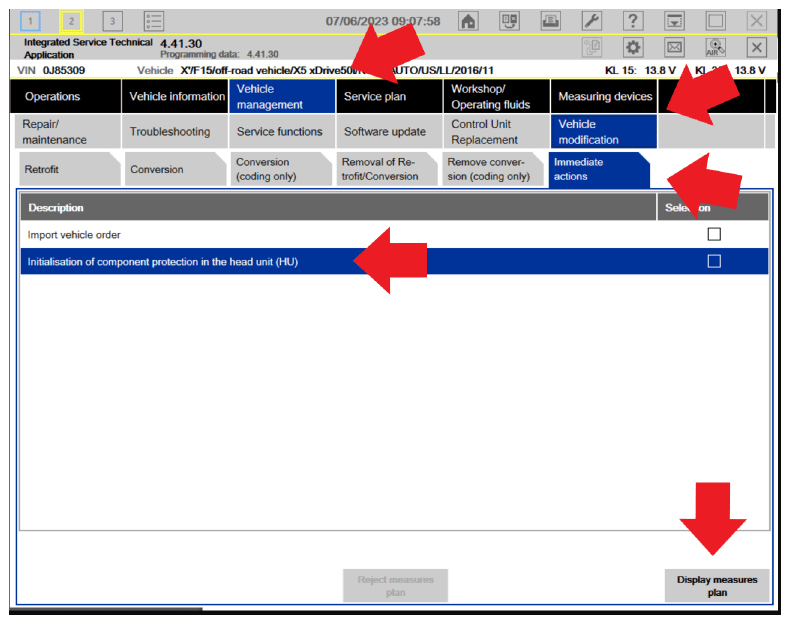

Connect the diagnosis system to the vehicle (ISTA 4)
Select "Vehicle Management"
Select "Vehicle Modification"
Select "Immediate Actions"
Select "Initialization of component protection in the head unit (HU)"
Select "Display Measures Plan"
Determine Measures plan and complete the programming
Follow the rework list for any final initializations or calibrations

After the programming has been fully completed, check functionality of the system.

Always connect a BMW-approved battery charger/power supply ( SI B04 23 10 ).

For information on programming and coding with ISTA, refer to Dealer Universal Portal/TIS/Technical Documentation/Diagnostics and Programming/Programming Documentation.
