Delivery Stop: Program Control Unit For OBD (SI B61 25 16)
Publication date: 2016-12-01Reference number: SI B61 25 16
Supersedes refnos: 61 25 16
DELIVERY STOP: PROGRAM CONTROL UNIT FOR OBD
TECHNICAL SERVICE BULLETIN
| BMW: | G12 (7 Series PHEV) |
| GROUP: | General Electrical Systems |
SERVICE INFORMATION
Please perform the procedure outlined in this Service Information on all affected vehicles before customer delivery. In the event the customer has already taken delivery of the vehicle, please perform the procedure the next time the vehicle is in the shop.
SITUATION
There may be a software error in the DME (Digital Motor Electronics) and/or BDC (Body Domain Controller) which sets an OBD (On Board Diagnostic) fault entry and trigger the CEL (Check Engine Light) to be illuminated.
This bulletin will be updated with repair instructions and warranty information when they become available.
AFFECTED VEHICLES
This Delivery Stop involves G12 (7 Series PHEV)
Vehicles which require this Delivery Stop to be completed will show it as "Open" when checked either in AIR, the "Service Menu" of DCSnet (Dealer Communication System) or with the Key Reader.
CAUSE
Software in the DME and/or BDC.
CORRECTION
Program and code the vehicle with ISTA 4.02.30 (I-Level 16-11-504) or higher
PROCEDURE
- Check current level of ISTA 4.
Is ISTA 4.02.30, or newer version, available?
YES - go to Step 3.
NO - Program the vehicle using the latest ISTA 4 version and then proceed to step 2.
- Submit a PuMA case requesting IRAP.
- Subject: Delivery Stop G12 PHEV
- IRAP will no longer be required when ISTA 4.02.30 is available (Friday December 2, 2016).
- Program the vehicle using the latest ISTA 4.02.30.
Note that ISTA 4 will automatically reprogram and code all programmable control modules that do not have the latest software.
Always connect a BMW approved battery charger/power supply (SI B04 23 10 ).
For information on programming and coding with ISTA/P, refer to CenterNet/TIS/Technical Documentation/Diagnostics and Programming/Programming Documentation.
WARRANTY INFORMATION
Reimbursement for this Delivery Stop campaign repair will be via normal claim entry utilizing the following information:
| Defect Code: | 0061430400 |
| Labor Operation: | Labor Allowance: | Description: |
|---|---|---|
| 00 64 789 | 8 FRU | Programming and coding (includes connecting an approved battery charger/power supply and performing a vehicle test) (Plus work) |
| Or: | ||
| 00 64 788 | 1 FRU | Programming and coding was performed previously in conjunction with another campaign or repair (vehicle is already at the specified "Target" integration level or higher, no repair is necessary) (Plus work) |
Vehicle Programming and Coding
When ISTA/P automatically reprograms and codes all the vehicle's control modules that currently do not have the latest software and if control module failures occur during this programming procedure:
- Please claim this consequential control module-related repair work under the defect code listed in this bulletin with the applicable KSD2/AIR labor operations.
Other Repairs
Control module failures that occurred prior to performing this programming procedure:
- When covered under an applicable limited warranty, claim this control module-related repair work using the applicable defect code and labor operations in KSD2/AIR.
ATTACHMENTS

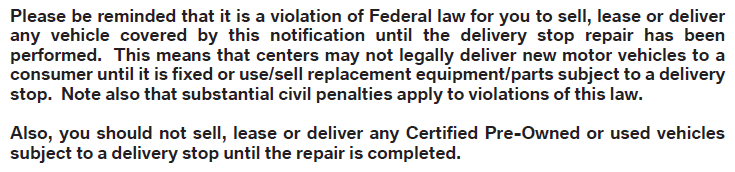

View PDF attachment B612516 Delivery Stop Legal .
