41 00... Body Gap Dimensions

The dimensions specified in this document are applicable at an object temperature of 20°C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

The door gaps must not deviate between the front and rear door gap by more than 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

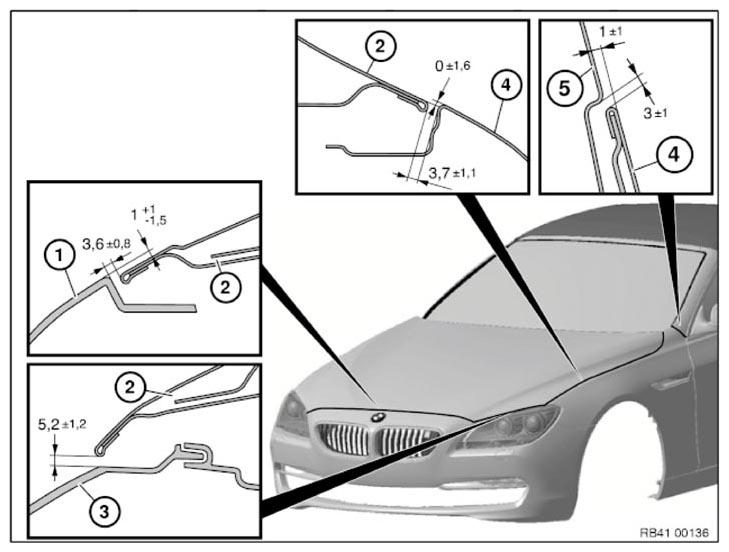

Fig 1: Hood, Front Bumper, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

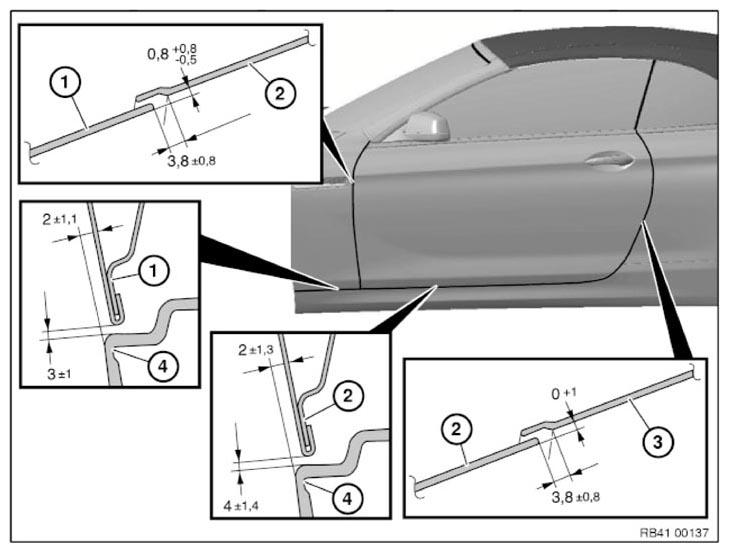

Fig 2: Front Fender, Front Door And Side Sill Trim Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

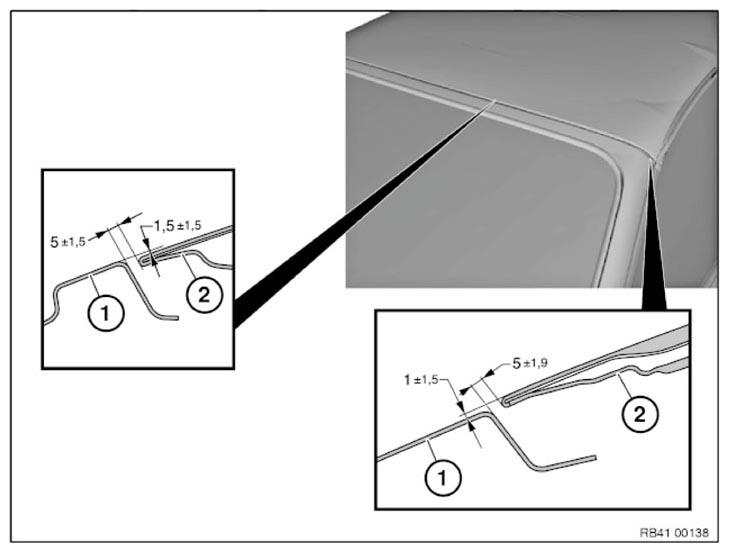

Fig 3: Windshield Header And Convertible Top Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

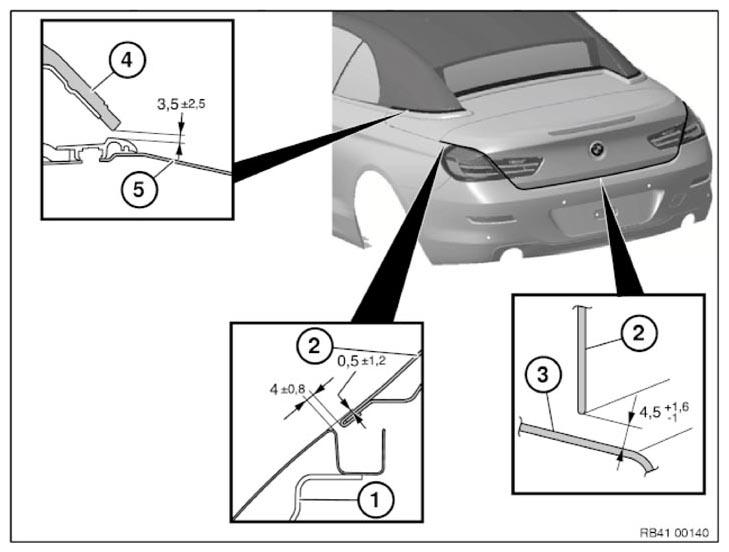

Fig 4: Quarter Panel And Convertible Top Cover Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

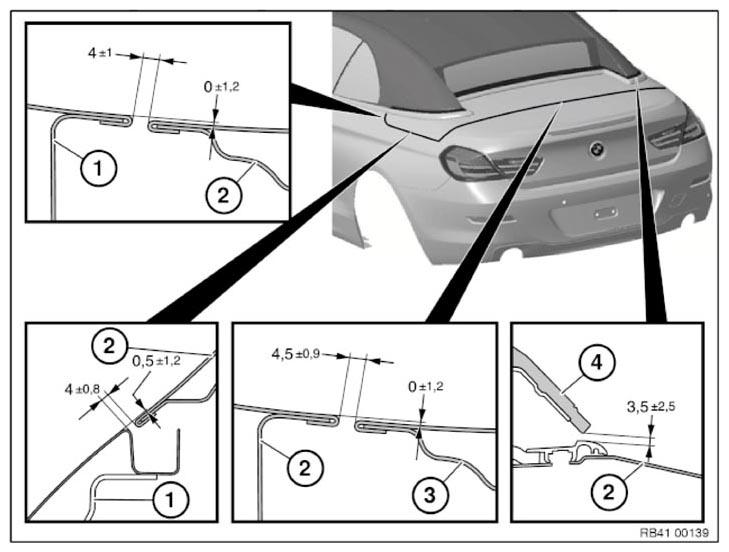

Fig 5: Convertible Top Cover, Trunk Lid And Rear Bumper Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.
