Frame Reference Body Dimensions

Dimensions in mm.

Dimension tolerances:

• ≤ 1000 mm ± 1.5 mm
• ≥ 1000 mm ± 2.5 mm

The checkpoints shown serve to check the body and the set of attachments.

View Of Vehicle Under Body 1

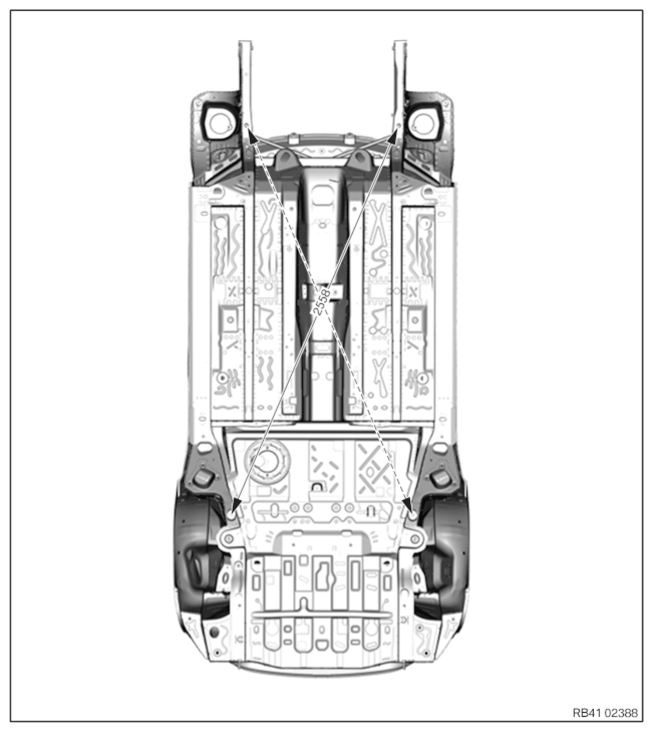

Fig 1: Under Body Frame Position Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

View Of Vehicle Under Body 2

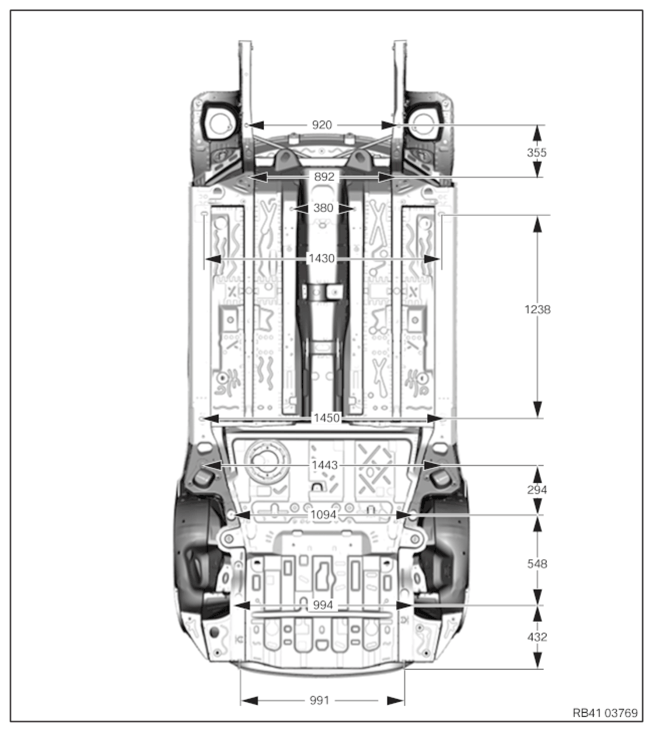

Fig 2: Under Body Frame Position Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Front End View

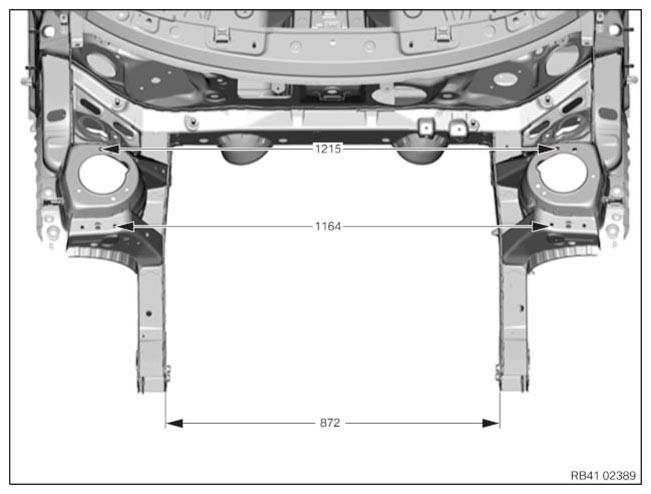

Fig 3: Engine Compartment Under Body Frame Position Dimensions And Measurement Points (Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

View, B-pillar

Courtesy of BMW OF NORTH AMERICA, INC.

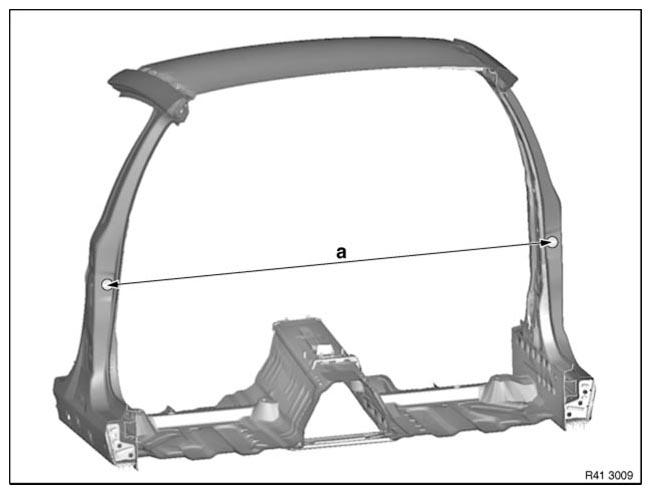

Measurement a = 1542 mm between screw-on points of door brakes.
