61 66... Installing pulse eliminator

NOTE: Repair instructions describe installation of the pulse eliminator (part number 7 404 885).
Pulse eliminator is fitted in case of the following customer complaint:

Windscreen washer fluid splashing onto windscreen when rear window washer is operated.

Necessary preliminary work:

Open engine compartment lid

NOTE: Hose with wiring harness (1) is located at right in direction of travel on gas pressure spring (2).

Remove hose with wiring harness (1) from bracket on gas pressure spring (2). Unfasten clip (3) from bonnet.

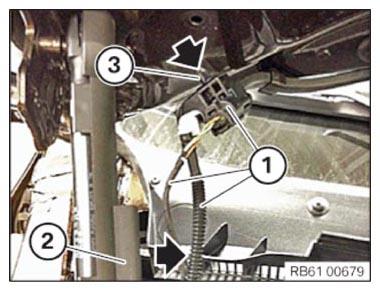

Fig 1: Identifying Pulse Eliminator, Wiring Harness, Clip And Gas Pressure Spring

G11110351

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off hose (1) from support (2).

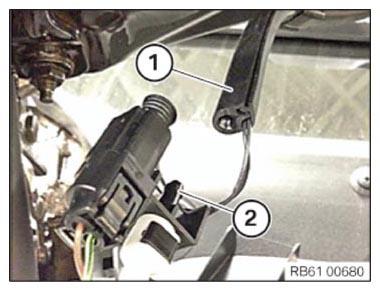

Fig 2: Identifying Pulse Eliminator Hose And Support

G11110352

Courtesy of BMW OF NORTH AMERICA, INC.

Version with heated washer jets only:

Bend up tab (2). Remove wiring harness (1) from hose (3) as shown in figure.

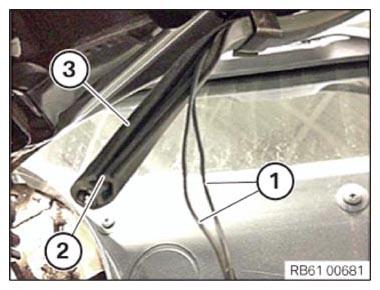

Fig 3: Identifying Pulse Eliminator Tab, Wiring Harness And Hose

G11110353

Courtesy of BMW OF NORTH AMERICA, INC.

Shorten hose (1) 30 mm with a suitable tool.

Cut-off hose (1) is no longer needed.

IMPORTANT: Risk of damage to version with heated washer jets!
Do not damage the wiring harness (2) when shortening the hose (1)!

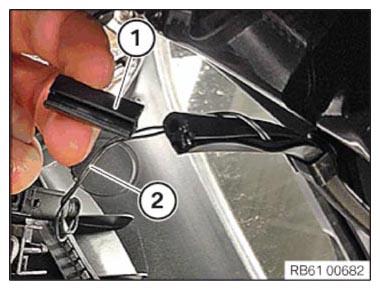

Fig 4: Shortening Pulse Eliminator Hose

G11110354

Courtesy of BMW OF NORTH AMERICA, INC.

Version with heated washer jets only:

Engage wiring harness (1) in hose (3) and close tab (2).

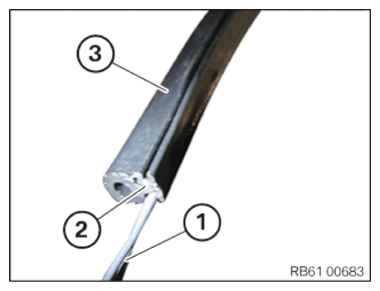

Fig 5: Engaging Wiring Harness Into Hose

G11110355

Courtesy of BMW OF NORTH AMERICA, INC.

Connect hose (2) to pulse eliminator (1) (from either side).

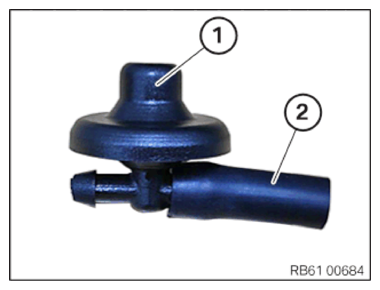

Fig 6: Identifying Hose And Pulse Eliminator

G11110356

Courtesy of BMW OF NORTH AMERICA, INC.

Connect pulse eliminator (1) to hose (2) as shown.

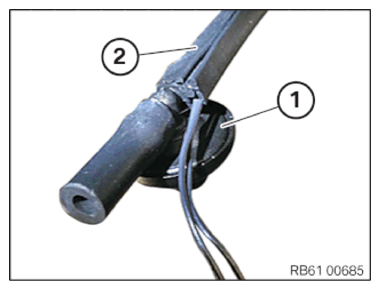

Fig 7: Connecting Pulse Eliminator And Hose

G11110357

Courtesy of BMW OF NORTH AMERICA, INC.

Connect hose (2) from pulse eliminator (1) to fitting (3) as shown.

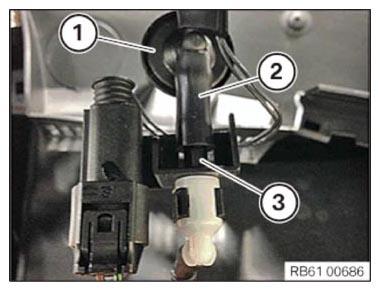

Fig 8: Identifying Pulse Eliminator, Hose And Fitting

G11110358

Courtesy of BMW OF NORTH AMERICA, INC.

Version with heated washer jets only:

Mask off excess length of wiring harness as shown (1).

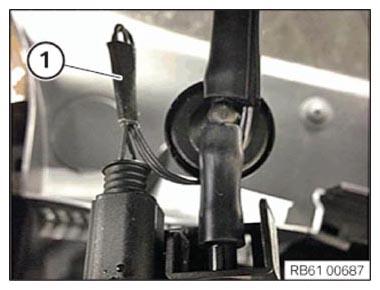

Fig 9: Masking-Off Excess Wiring Harness Length

G11110359

Courtesy of BMW OF NORTH AMERICA, INC.

Attach hose with wiring harness to bracket on gas pressure spring. Fasten clip in bonnet.
