Installing the oxygen sensor monitor

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see OVERVIEW OF CONSUMABLES .

Courtesy of BMW OF NORTH AMERICA, INC.

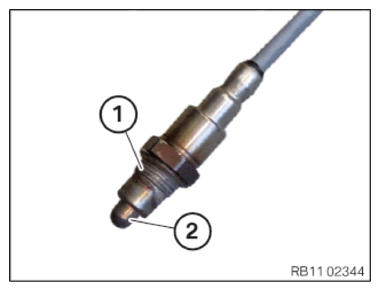

(1) = Thread
(2) = Sensor ceramics

NOTE: The cable of the oxygen sensor monitor is gray. The installation location of the oxygen sensor monitor is behind the catalytic converter.

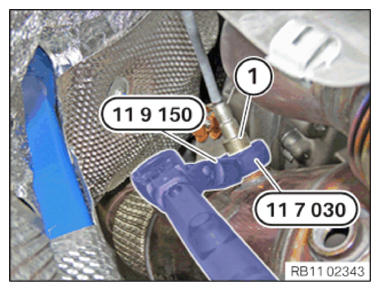

Screw the oxygen sensor monitor (1) in.
Tighten oxygen sensor monitor (1) using special tools 0 493 751 (11 9 150) and 0 491 075 (11 7 030) .

TIGHTENING TORQUE SPECIFICATIONS

Oxygen sensor monitor on catalytic converter
M18X1.5	tightening torque	50 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

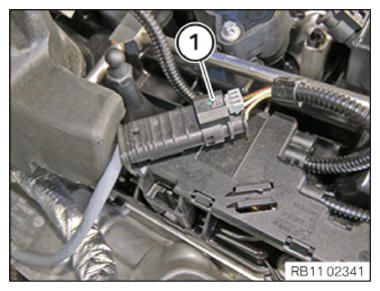

Connect connector (1) and attach it to the carrier plate.

Courtesy of BMW OF NORTH AMERICA, INC.

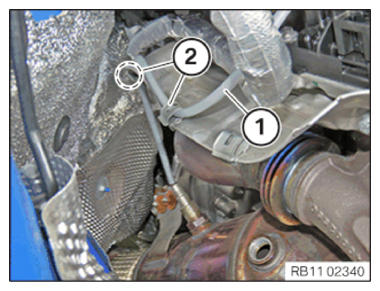

Attach the cable (1) in the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
