Installing all intermediate levers
NOTE:
TECHNICAL INFORMATION
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring .
For further information on possible combinations, see the applicable BMW parts catalogue.
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring .
For further information on possible combinations, see the applicable BMW parts catalogue.

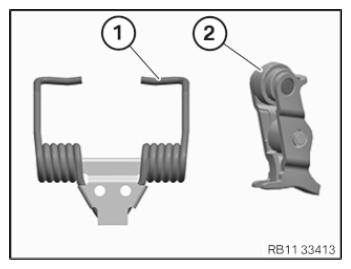

- Version with a torsion spring with an L-shaped contour and a suitable intermediate lever:
Use a torsion spring (1) with L-shaped contour only in connection with the suitable intermediate lever (2) .

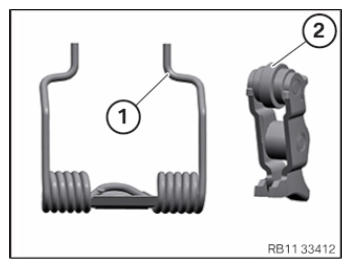

- Version with a torsion spring with an S-shaped contour and a suitable intermediate lever:
Use a torsion spring (1) with the s-shaped contour only in connection with the suitable intermediate lever (2) .

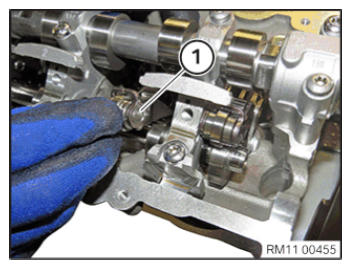

NOTE: The description is provided only at one component. The procedure is the same for all other components. - Install the intermediate lever (1) .
