00 00... Information/Warning Labels
Courtesy of BMW OF NORTH AMERICA, INC.

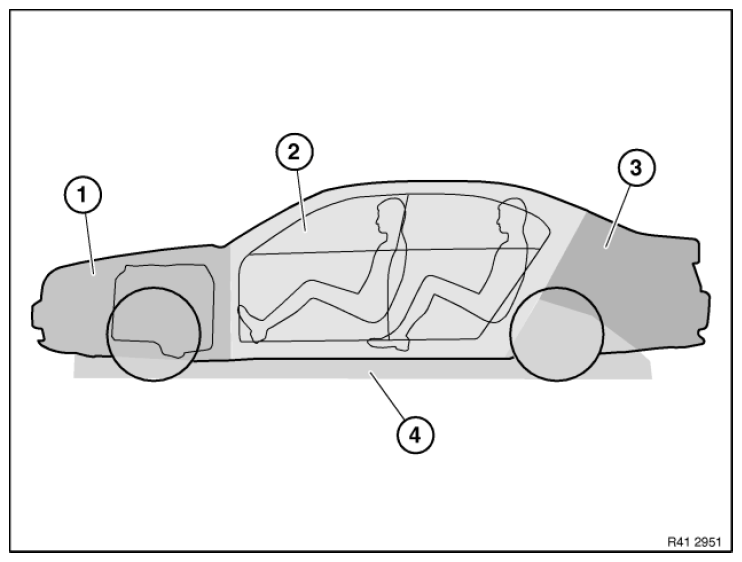

| 1 |
Engine compartment |
3 |
Rear end |
| 2 |
Interior |
4 |
Underfloor |
| Engine compartment (1): |
| Carrier support, wheel arch front left top, front passenger side |
Vehicle identification number |
India only |
| Connection, top front |
BMW Individual |
Only Individual U490, SA940, Z1XX, SABI |
| Connection, front top left and right |
Warning label, xenon light |
Worldwide |
| Connection, top front |
Aluminium screws/bolts |
China, N5X |
| Cylinder head cover |
Ignition coil |
- |
| Connection, top front |
BMW High Performance Oil |
US only |
| Connection, top left |
Retaining hook |
Worldwide |
| Sealing cap of coolant expansion tank |
Coolant cap, China |
China only |
| Engine compartment lid, inner panel |
Refrigerant |
Worldwide |
| Engine compartment lid, inner panel |
Production date |
Australia, Great Britain |
| Engine compartment lid, inner panel |
Exhaust gas |
US only |
| Dome bulkhead cross-brace, left |
Brake fluid |
Canada only |
| Connection, top front |
Exterior paint |
Only US, CDN version, Japan version, Australia version, Gulf version, China version and for all SKDs |
| Control unit, 12-cylinder engine: 2 devices = 2 labels |
Type plate for engine control unit |
China only |
| Engine compartment lid, inner panel |
Duplicate type plate independent heating |
Only optional equipment SA 536 and only gasoline or diesel |
| Interior (2): |
| Windscreen |
CCC |
China only |
| Trim, hot-air routing |
Vehicle identification number |
US, Canada or SA8SM |
| Decor strip |
Front passenger airbag |
US only |
| Windscreen, inner, driver's side, top |
Maximum speed M+S |
Car rental SA931, Dispatch, BMW World SA9WR |
| Bottle holder |
Parking brake emergency release |
- |
| Complete vehicle, bodyshell: |
| B-pillar, driver's side |
Manufacturer's certificate |
US, CDN, Gulf States |
| B-pillar, driver's side |
Tire inflation pressure |
Worldwide |
| B-pillar, driver's side |
Tire inflation pressure monitoring system |
US only |
| B-pillar, driver's side |
Runflat indicator |
Worldwide (not US, CDN) |
| B-pillar, driver's side |
Warning labels, side airbag |
- |
| B-pillar, right |
Nameplate |
China only |
| B-pillar, driver's side |
EC type plate with model designation, vehicle identification number, color code |
Worldwide, not US, CDN, China, Japan, Korea, Australia, Gulf States, SA8AC, SKDs |
| B-pillar, driver's side |
Towing |
Four-wheel drive vehicles only |
| Rear end (3): |
| Fuel filler cap, inner |
Independent heating |
Europe, only SA536 |
| Fuel filler flap, inner |
Unleaded gasoline ROZ95 |
N54/N63/N74 only |
| Fuel filler flap, inner |
Premium unleaded |
China, US |
| Enclosure for Owner's Handbook |
Efficient Dynamics |
SA1CD only |
| Power distribution box, rear |
Fastening stickers, rear |
Worldwide |
| Luggage compartment floor, front |
Parking brake emergency release |
Worldwide |
| Rear lid, outer |
Barcode |
US, Great Britain, China |
| Toolkit cover |
BMW Group Mobile Service |
US, LA801 |
| Toolkit |
Transmission |
- |
| Underfloor (4): |
| Front axle support under steering gear drive |
Airbag (basic setting) |
For all optional equipment/national-market versions |
| Link and right tension struts |
Do not lash down |
- |
Key:
US = United States
CDN = Canada
CCC = Car Communication Computer
OBD = On-Board Diagnosis
