61 13... Special tools for wiring harness repairs

Special tools required:

• 61 0 300
• 61 0 400
• 61 1 100
• 61 4 320
• 61 0 200
• 61 0 210
• 61 0 220
• 61 0 230
• 61 0 240

Repair range, vehicle electrical system:

Single parts for wiring harness repairs

Release and press-out tool:

• Special tool 61 0 300
• Special tool 61 0 400 (MINI N12/N14)
• Special tool 61 1 100 (engine)

Handling:

• NOTES FOR OPENING CONTACTS AND LOCKS OF DIFFERENT CONNECTOR SYSTEMS

Cutting to length and stripping insulation from cables:

Wire stripper MultiStrip10

Handling:

• CUTTING CABLES TO LENGTH AND STRIP INSULATION

Crimping stop parts (small contacts) and butt connectors:

• Special tool 61 4 320

1. Tool without crimping head
2. Crimping head (STRIPPING INSULATION AND CUTTING FIBRE-OPTIC CABLES TO LENGTH)
3. Crimping head (CRIMPING FIBRE-OPTIC CABLE CONTACTS)
4. Crimping head (CRIMPING MQS CONTACTS)
5. Crimping head (CRIMPING MPQ CONTACTS)
6. Replacement blade (face-cutting fibre-optic cables)
7. Replacement blade with tool (insulation stripping unit)
8. Universal crimping head

Crimping stop parts (large contacts) and butt connectors:

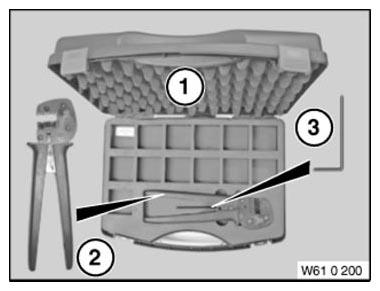

• Special tool 61 0 200 (crimping set)
• Special tool 61 0 210 (matrix set SLK 8)
• Special tool 61 0 220 (matrix set SLK 2.8)
• Special tool 61 0 230 (matrix set MAK 8/DFK4)
• Special tool 61 0 240 (butt connector 4.0 - 6.0 mm² )
