61 13... Unlocking and disconnecting different plug connections

Differences in the details of the size and shape of the plug connections are possible.

1. Press lock and open release clip in direction of arrow.

   Disconnect plug connection.

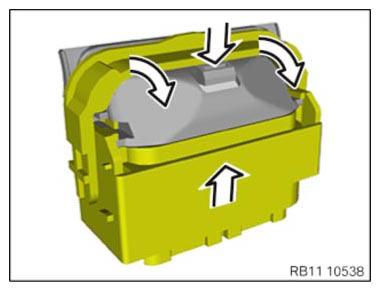

   Fig 1: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
2. Press lock and open release clip in direction of arrow.

   Disconnect plug connection.

   Fig 2: Opening Plug Connection Release Clip

   Courtesy of BMW OF NORTH AMERICA, INC.
3. Open release clip in direction of arrow and disconnect plug connection in direction of arrow.
   Fig 3: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
4. Press lock and disconnect plug connection in direction of arrow.
   Fig 4: Pressing Plug Connection Lock

   Courtesy of BMW OF NORTH AMERICA, INC.
5. Press lock and disconnect plug connection in direction of arrow.
   Fig 5: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
6. Press lock and disconnect plug connection in direction of arrow.
   Fig 6: Pressing Plug Connection Lock

   Courtesy of BMW OF NORTH AMERICA, INC.
7. Press lock and disconnect plug connection in direction of arrow.
   Fig 7: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
8. Press lock and disconnect plug connection in direction of arrow.
   Fig 8: Pressing Plug Connection Lock

   Courtesy of BMW OF NORTH AMERICA, INC.
9. Press lock and disconnect plug connection in direction of arrow.
   Fig 9: Disconnecting Plug Connection

   Courtesy of BMW OF NORTH AMERICA, INC.
10. Press the lock and detach plug connection.

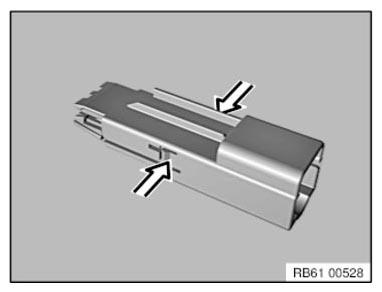

    Fig 10: Pressing Plug Connection Lock

    Courtesy of BMW OF NORTH AMERICA, INC.
11. Press the lock and detach plug connection.
    Fig 11: Pressing Plug Connection Lock

    Courtesy of BMW OF NORTH AMERICA, INC.
12. Press the lock on both sides and detach plug connection.
    Fig 12: Pressing Plug Connection Lock (Both Sides)

    Courtesy of BMW OF NORTH AMERICA, INC.
13. Press the lock and detach plug connection.
    Fig 13: Pressing Plug Connection Lock

    Courtesy of BMW OF NORTH AMERICA, INC.
14. Press lock and open release clip in direction of arrow.

    Disconnect plug connection.

    Fig 14: Opening Plug Connection Release Clip

    Courtesy of BMW OF NORTH AMERICA, INC.
15. Press the lock and detach plug connection.
    Fig 15: Detaching Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
16. Pull out lock and press.

    Disconnect plug connection.

    Fig 16: Pulling Plug Connection Lock

    Courtesy of BMW OF NORTH AMERICA, INC.
17. Press the lock and detach plug connection.
    Fig 17: Pressing Plug Connection Lock

    Courtesy of BMW OF NORTH AMERICA, INC.
18. Press the lock and detach plug connection.
    Fig 18: Removing Plug Connection

    Courtesy of BMW OF NORTH AMERICA, INC.
19. Press the lock and detach plug connection.
    Fig 19: Pressing Plug Connection Lock

    Courtesy of BMW OF NORTH AMERICA, INC.
20. Plug connection, e.g. on the power distribution box:

    Press into the opening (2) using a suitable tool (1).

    Pull off plug connection (3) upwards.

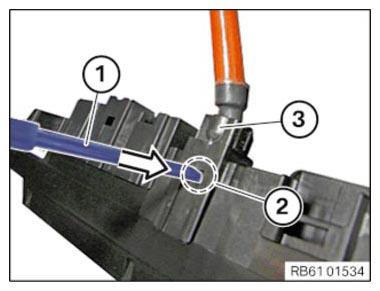

    Fig 20: Pressing Plug Connection Opening Using Suitable Tool

    Courtesy of BMW OF NORTH AMERICA, INC.
21. Plug connection, e.g. on the power distribution box:

    Lift lock (1) with a suitable tool.

    Pull off plug connection (2) upwards.

    Fig 21: Removing Power Distribution Box Plug Connection Lock

    Courtesy of BMW OF NORTH AMERICA, INC.
