61 34... Removing and installing/replacing 12-V power socket

Special tools required:

Check the equipment dependent sockets that are available.

Necessary preliminary tasks:

Cup holder, front

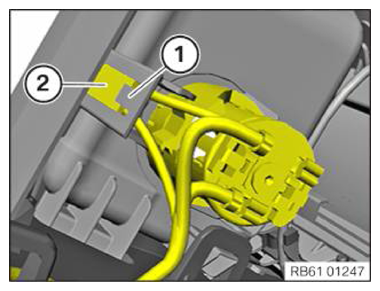

Release latch mechanism (1) and thread out LED (2).

Fig 1: Identifying Latch Mechanism And LED

Courtesy of BMW OF NORTH AMERICA, INC.

Cup holder, front

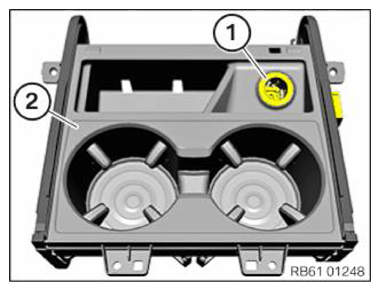

Use the special tool 61 0 250 to remove the power socket (1) from the center console trim.

See last operation.

Fig 2: Removing Power Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Rear center console trim:

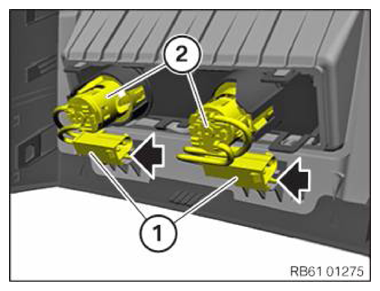

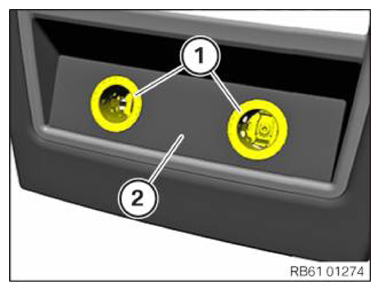

Unlock connector (1) and thread out cable (2) for power socket.

Fig 3: Identifying Connector And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Rear center console trim:

Remove power socket (1) from the center console trim using special tool 61 0 250 .

See last operation.

Fig 4: Removing Power Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Open flap in luggage compartment trim panel on right.

Put your hand behind the right luggage compartment wheel arch panel.

Detach connector (1) from power socket (2).

Fig 5: Identifying Connector And Power Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Fold up the protective cap over power socket (1).

Fig 6: Identifying Power Socket Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Remove power socket (1) using special tool 61 0 250 .

See last operation.

Fig 7: Identifying Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out 12-V power socket from housing with special tool 61 0 250 until connector is at bottom of light ring.

Fig 8: Removing 12V Socket Using Special Tool (61 0 250)

Courtesy of BMW OF NORTH AMERICA, INC.
