2410217 Removal aid AM: Notes

NOTE: To remove residues from a demolished spark plug connector. Contour-graphic silhouette foil is included in the delivery specification.

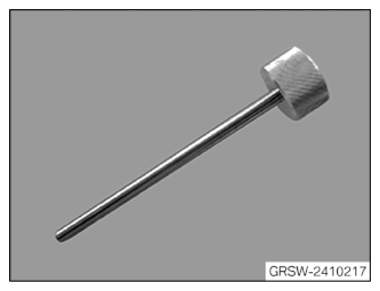

Fig 1: Identifying Removal Aid (2410217)
G11114320Courtesy of BMW OF NORTH AMERICA, INC.
