99 00... Interior painting

WARNING: This page is about a different car, the 2014 BMW X6 M, 2013 BMW X6 M, 2012 BMW X6 M, 2011 BMW X6 M, and 2010 BMW X6 M. However, it is still accessible from the selected car via links, so may be relevant.

Follow GENERAL INSTRUCTIONS ON PAINTING .

Engine compartment, complete

Carry over the area shown symmetrically to the other side of the car.

Fig 1: Identifying Complete Engine Compartment

G08531358

Courtesy of BMW OF NORTH AMERICA, INC.

Engine bulkhead

Fig 2: Identifying Engine Bulkhead

G08531359

Courtesy of BMW OF NORTH AMERICA, INC.

Engine carrier (inside only)

Fig 3: Identifying Engine Carrier (Inside)

G08531360

Courtesy of BMW OF NORTH AMERICA, INC.

Engine carrier (partial replacement before front axle)

Inner side shown

Fig 4: Identifying Engine Carrier (Inner Side)

G08531361

Courtesy of BMW OF NORTH AMERICA, INC.

Engine carrier (partial replacement before front axle)

Outer side shown

Fig 5: Identifying Engine Carrier (Outer Side)

G08531362

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Inner side shown

Fig 6: Identifying Front Wheel Arch (Inner Side)

G08531363

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Outer side shown

Fig 7: Identifying Front Wheel Arch (Outer Side)

G08531364

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment floor plate

Carry over the area shown symmetrically to the other side of the car.

Fig 8: Identifying Luggage Compartment Floor Plate

G08531365

Courtesy of BMW OF NORTH AMERICA, INC.

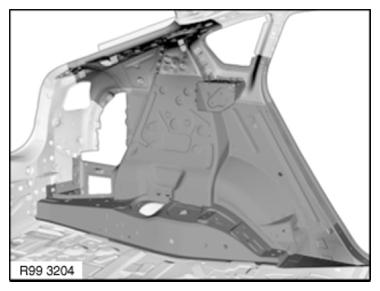

Wheel arch, rear

Fig 9: Identifying Rear Wheel Arch

G08587795

Courtesy of BMW OF NORTH AMERICA, INC.
