99 00... Sectional painting

Follow GENERAL INSTRUCTIONS ON PAINTING .

Door pillar, middle

Area specification applies to all paint stages.

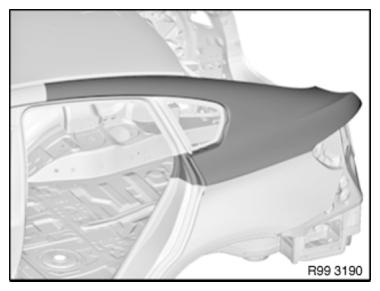

Fig 1: Identifying Middle Door Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front

Area specification applies to paint stage 1.

Fig 2: Identifying Front Roof Frame (Paint Stage 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front

Area specification applies to paint stage 3.

Fig 3: Identifying Front Roof Frame (Paint Stage 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame

Area specification applies to all paint stages.

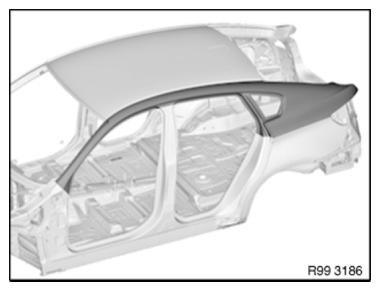

Fig 4: Identifying Roof Frame (All Paint Stage)

Courtesy of BMW OF NORTH AMERICA, INC.

Roof with roof frame

Area specification applies to all paint stages.

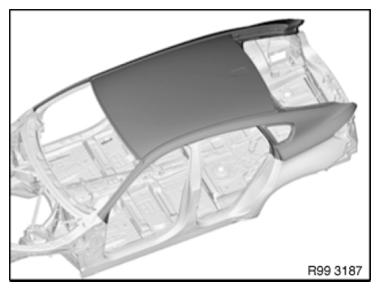

Fig 5: Identifying Roof With Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Side panel, rear (up to roof frame, middle)

Area specification applies to paint stage 1.

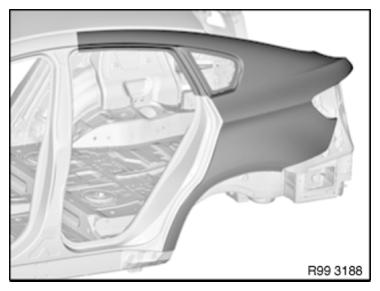

Fig 6: Identifying Rear Side Panel (Up To Roof Frame, Middle, Paint Stage 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Side panel, rear (up to roof frame, middle)

Area specification applies to paint stage 3.

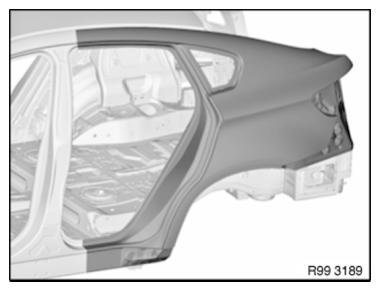

Fig 7: Identifying Rear Side Panel (Up To Roof Frame, Middle, Paint Stage 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel above cutting edge

Area specification applies to all paint stages.

Fig 8: Identifying Rear Side Panel (Above Cutting Edge)

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel below cutting edge

Area specification applies to all paint stages.

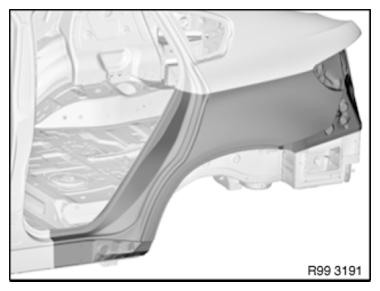

Fig 9: Identifying Rear Side Panel (Below Cutting Edge)

Courtesy of BMW OF NORTH AMERICA, INC.

Cover for entrance

Area specification applies to all paint stages.

Fig 10: Identifying Cover For Entrance

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid, top

Area specification applies to all paint stages.

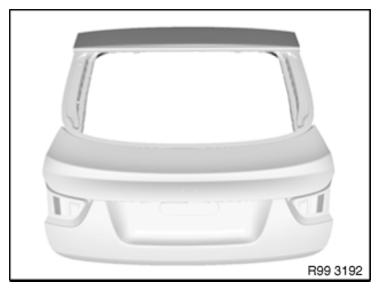

Fig 11: Identifying Top Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid above cutting edge, middle

Area specification applies to all paint stages.

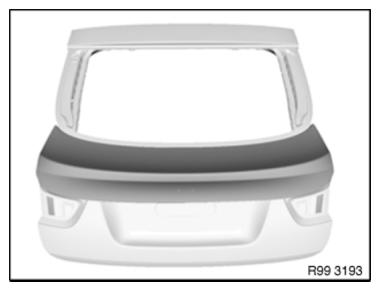

Fig 12: Identifying Middle Rear Lid (Above Cutting Edge)

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid below cutting edge, middle

Area specification applies to all paint stages.

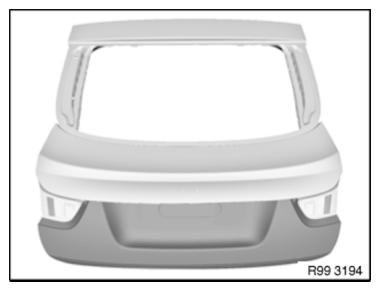

Fig 13: Identifying Middle Rear Lid (Below Cutting Edge)

Courtesy of BMW OF NORTH AMERICA, INC.
