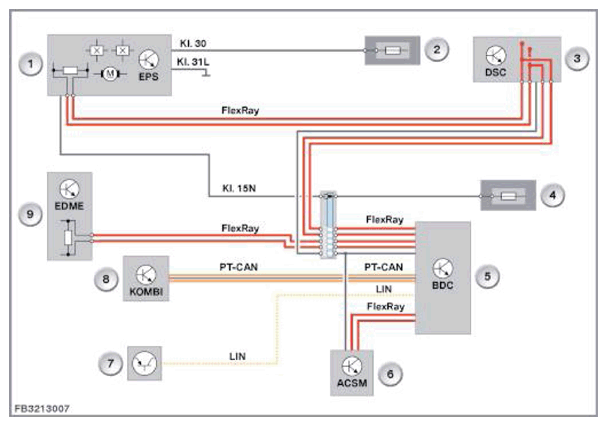

Functional networking EPS
| Item | Explanation |
|---|---|
| 1 | EPS unit with EPS control unit |
| 2 | Power distribution box, battery |
| 3 | Dynamic stability control (DSC) |
| 4 | Power distribution box Life module |
| 5 | Body Domain Controller |
| 6 | Crash Safety Module (ACSM) |
| 7 | Steering column switch cluster |
| 8 | Instrument panel (KOMBI) |
| 9 | Electrical Digital Motor Electronics (EDME) |
