Install engine
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure there is a specific weight compensation on the car.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

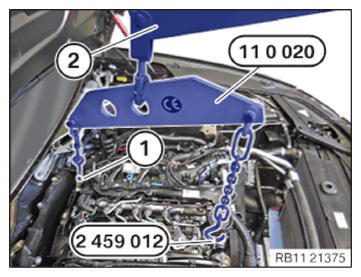

- Guide in and install the engine with the workshop crane (2) 2 220 718 .
- Lower engine with the workshop crane (2) 2 220 718 .
- Feed out special tool 0 490 567 (11 0 020) at the workshop crane (2) 2 220 718 .
- Feed out special tool 0 490 567 (11 0 020) at the engine mounting bracket (1) .
- Feed out special tool 0 490 567 (11 0 020)
at the special tool 2 459 012
.

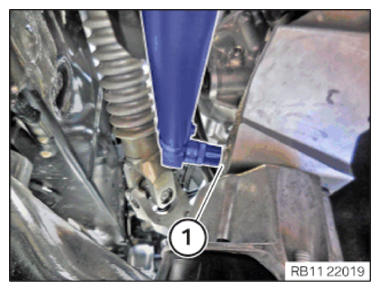

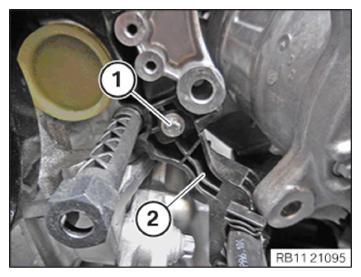

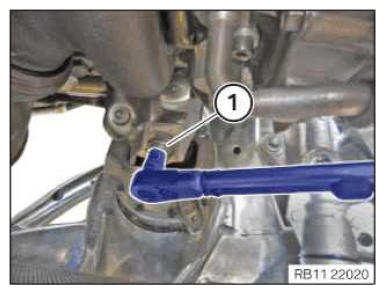

- Tighten the screw (1)
of the right engine mount from the top
with a standard tool.TIGHTENING TORQUE SPECIFICATION
Engine mount to engine support bracket M12 tightening torque 100 Nm - Tighten the screw (1)
of the left engine mount from the bottom
with a standard tool.TIGHTENING TORQUE SPECIFICATION

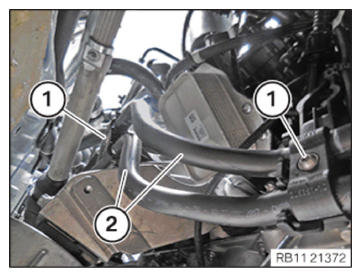

Engine mount to engine support bracket M12 tightening torque 100 Nm - Feed in and install transmission oil lines (2) .
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION
Holder for transmission oil line Screw Tightening torque 4 Nm - Feed in and position the manifold bracket (2) .
- Hand-tighten the bolts (1)
.

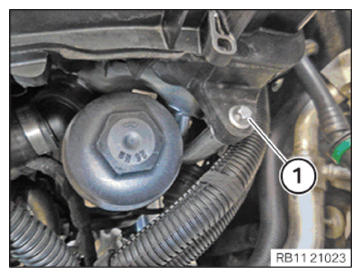

- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATION
Intake plenum to support M6X25 Tightening torque 8 Nm - Tighten screws (1)
at the manifold brackets (2)
.TIGHTENING TORQUE SPECIFICATION

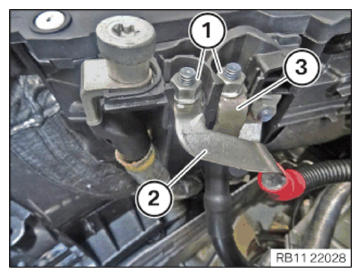

Manifold bracket to crankcase M6x16 tightening torque 8 Nm - Insert and position the positive battery cable (3) .
- Insert and position the positive battery cable (2) .
- Tighten nuts (1)
.TIGHTENING TORQUE SPECIFICATION

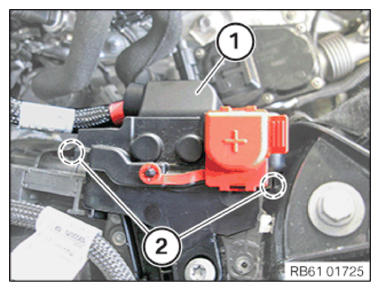

Positive battery cable Positive pole screw tightening torque 15 Nm - Feed in the cover (2) in a downwards direction.
- Engage the cover (2)
in the detents (1)
.

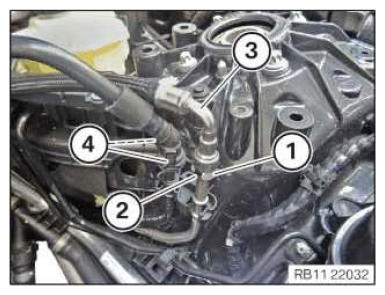

- Connect tank vent line (4) and lock.
- Make sure that the tank vent line (4) engages audibly.
- Connect and lock fuel delivery line (3) .
- Ensure that the locking mechanism (2) engages audibly.
- Feed in and install the clamp (1)
.

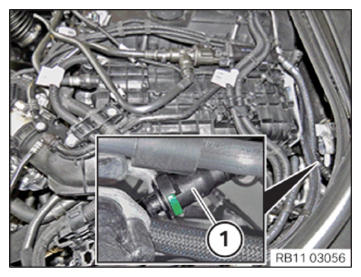

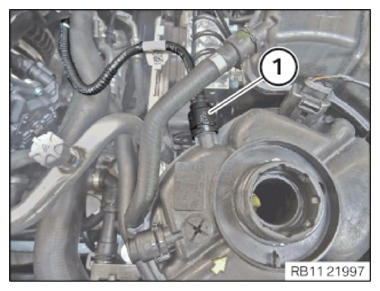

- Connect the vacuum line (1) and lock.
- Ensure that the vacuum line (1)
audibly engages.

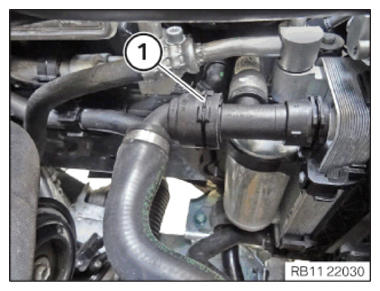

- Connect and lock coolant line (1) .
- Make sure that the coolant line (1)
engages audibly.

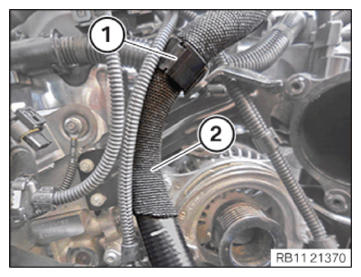

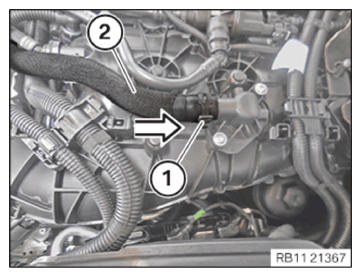

- Feed in coolant hose (2) in direction of arrow and install.
- Fasten the clamping collar (1) with the special tool 0 495 794 (17 2 050)
.
- Guide in and position coolant hose (2) .
- Lock clamp (1) .
- Make sure that the clamp (1)
engages audibly.

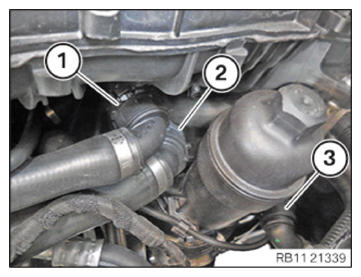

- Connect the coolant lines (1) to (3) and lock them.
- Make sure that you can hear the coolant lines (1)
engage up to (3)
.

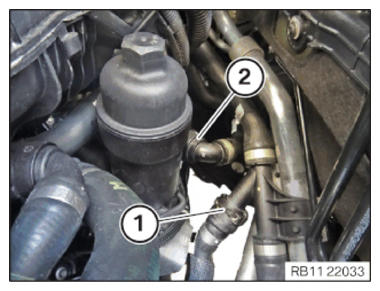

- Connect and lock coolant lines (1) and (2) .
- Make sure that you can hear coolant lines (1)
and (2)
engage.

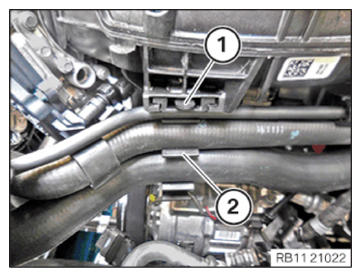

- Insert and install the holder (2) .
- Ensure that the locking mechanism (1)
engages audibly.

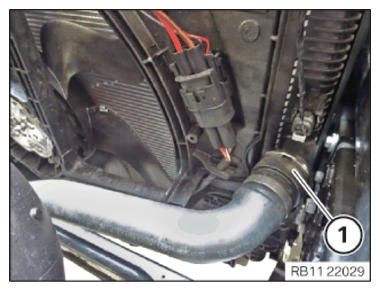

- Connect and lock coolant line (1) .
- Make sure that the cooling line (1)
engages audibly.

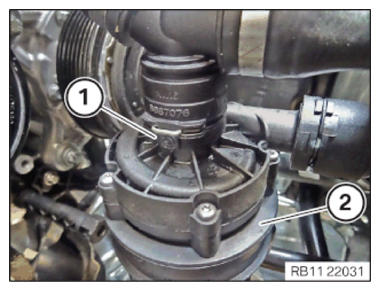

- Connect and lock the coolant line (1) to the electric coolant pump (2) .
- Make sure that the coolant line (1)
engages audibly.
- Connect and lock coolant line (1) .
- Make sure that the cooling line (1)
engages audibly.

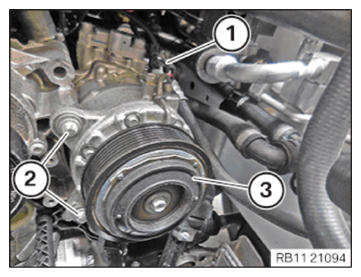

- Insert and install the air conditioning compressor (3) .
- Tighten down screws (2)
.TIGHTENING TORQUE SPECIFICATION
Air conditioning compressor in component carrier M10 Tightening torque 38 Nm - Connect and lock the connector (1) .
- Make sure the connector (1) engages audibly.

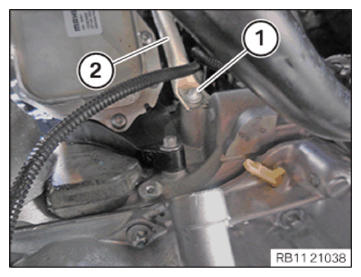

- Insert and install the holder (2) .
- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATION
Holder for transmission oil lines on component carrier M6X16 Tightening torque 12 Nm
Follow-up work
- Refer to REMOVING SPECIAL TOOL FROM THE CYLINDER HEAD .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING ALL IGNITION COILS .
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
- Refer to ATTACHING THE ELECTRIC AUXILIARY COOLANT PUMP FOR THE CHARGE AIR COOLER AND/OR AIR CONDITIONING CONDENSER .
- Refer to INSTALLING THE AUTOMATIC TRANSMISSION (GA8HP51Z) .
- Refer to INSTALLING THE EXHAUST BRACKET .
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to SECURING THE HYDRAULIC LINES TO THE TRANSMISSION .
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
- Refer to INSTALLING THE RETAINING PLATES .
- Refer to INSTALLING THE HEAT SHIELD .
- Refer to INSTALLING STARTER MOTOR .
- Refer to INSTALLING CATALYTIC CONVERTER .
- Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALLING LAMBDA OXYGEN SENSOR .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to CHECKING ENGINE OIL LEVEL .
- Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
- Refer to CHECKING THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
- Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
- Refer to INSTALLING CENTER BULKHEAD LOWER PART .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to IF INSTALLED: INSTALL UNDERBODY PROTECTION FOR THE STEERING .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
