61 13... Unlocking and disconnecting different plug connections

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Examples of unlocking and disconnecting different plug connections.

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Pressing Lock And Open Clip In Direction Of Arrow

G03165781

Courtesy of BMW OF NORTH AMERICA, INC.

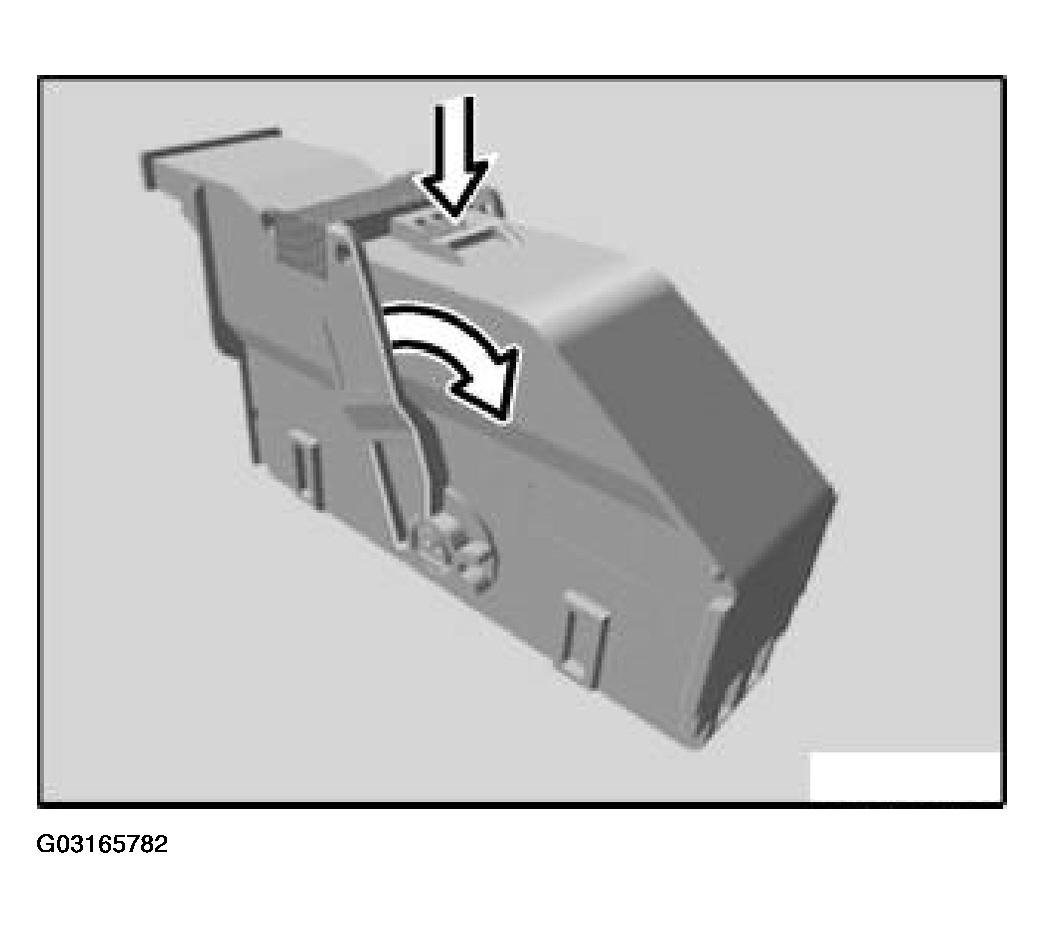

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Pressing Lock And Open Clip In Direction Of Arrow

G03165782

Courtesy of BMW OF NORTH AMERICA, INC.

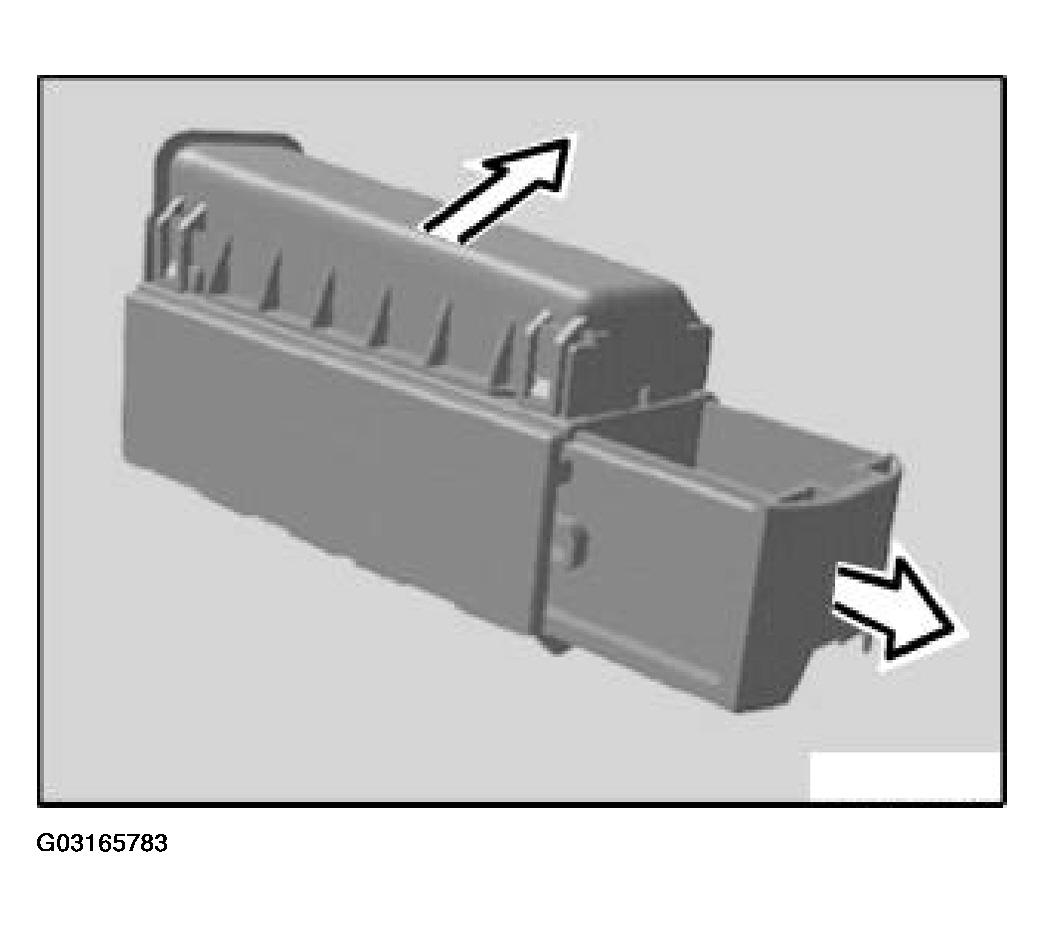

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Disconnecting Plug Connection In Direction Of Arrow

G03165783

Courtesy of BMW OF NORTH AMERICA, INC.

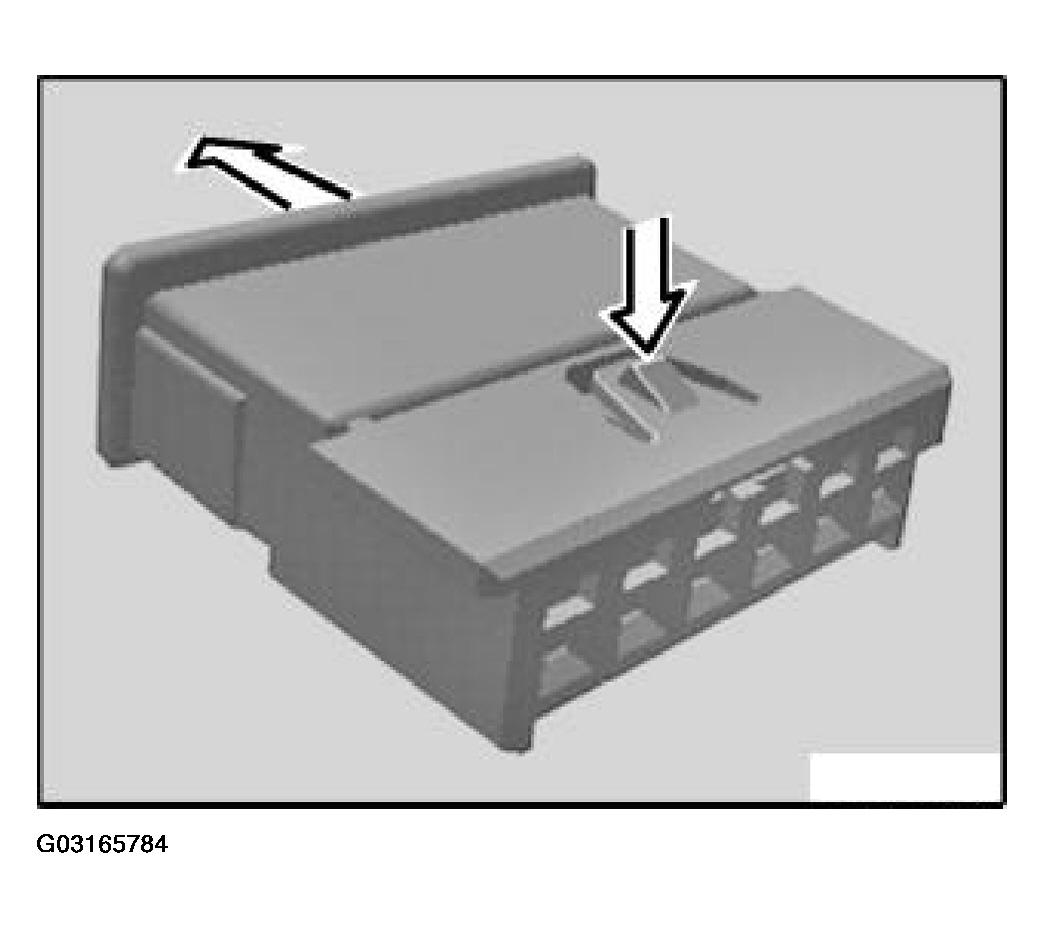

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165784

Courtesy of BMW OF NORTH AMERICA, INC.

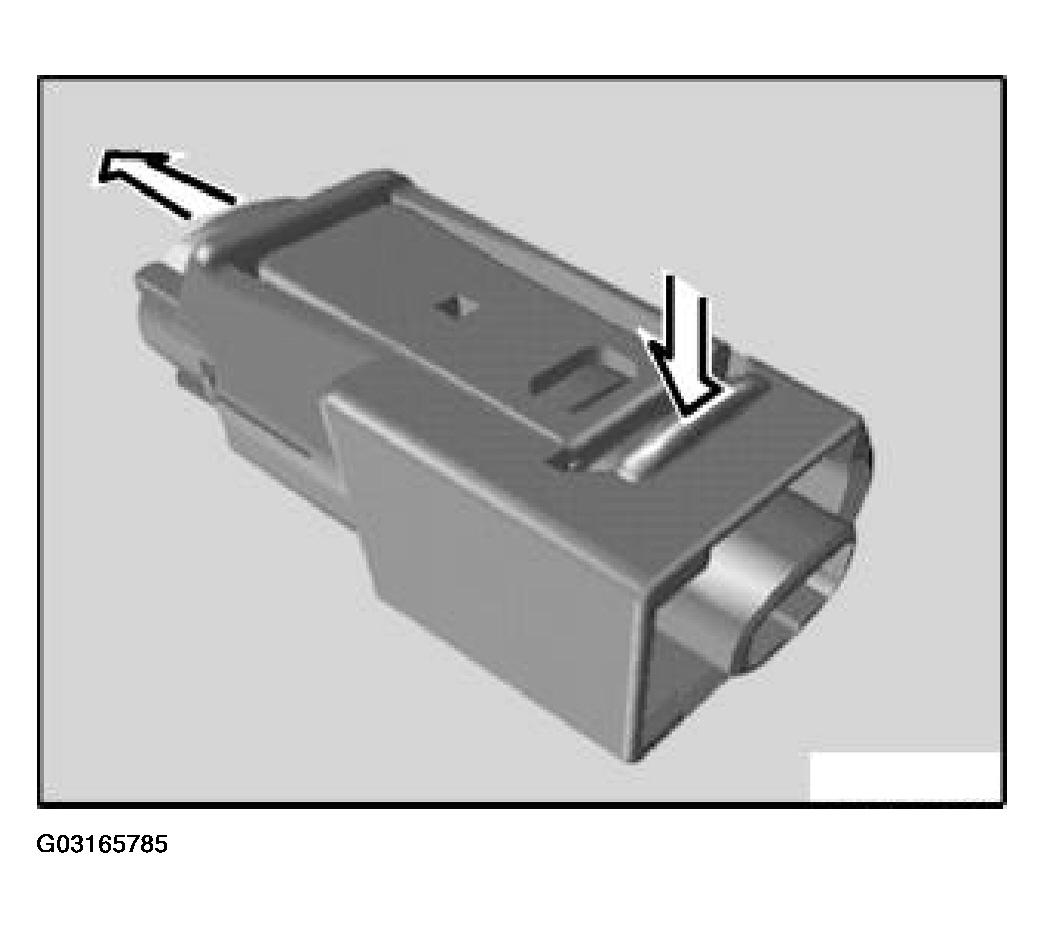

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165785

Courtesy of BMW OF NORTH AMERICA, INC.

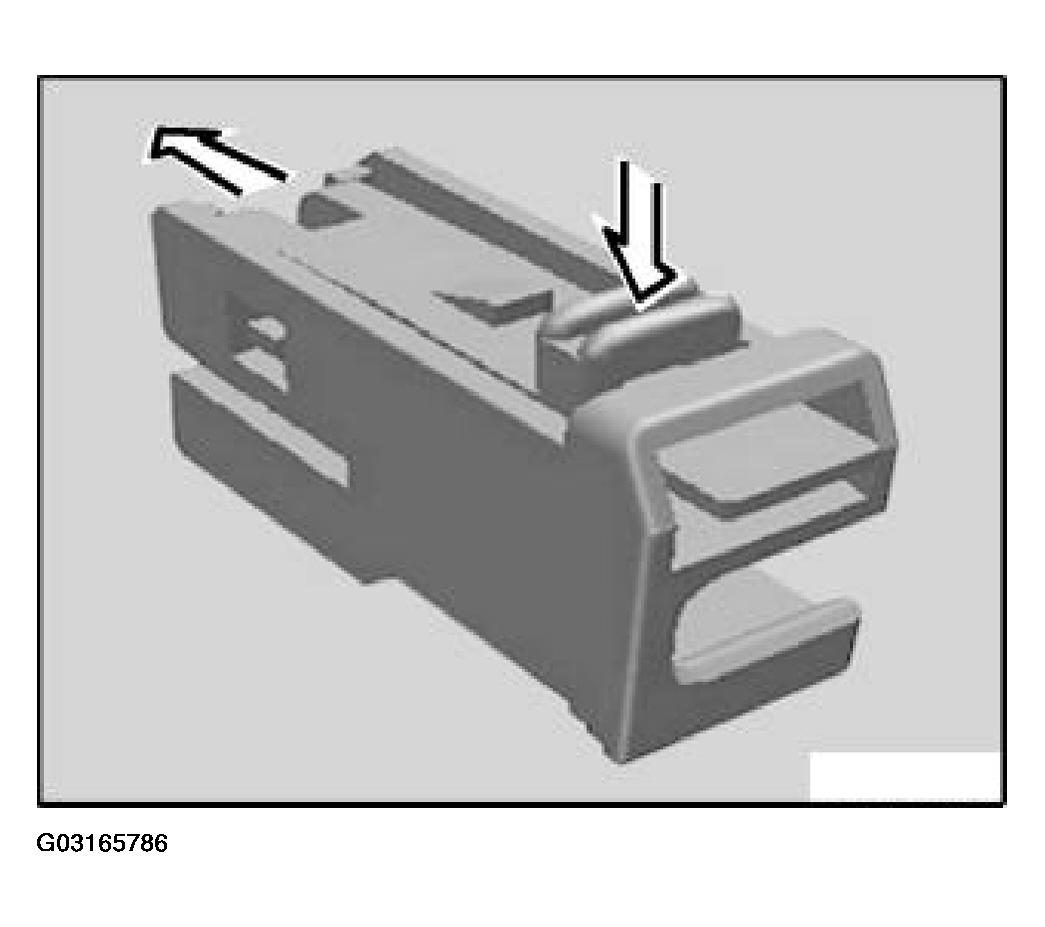

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165786

Courtesy of BMW OF NORTH AMERICA, INC.

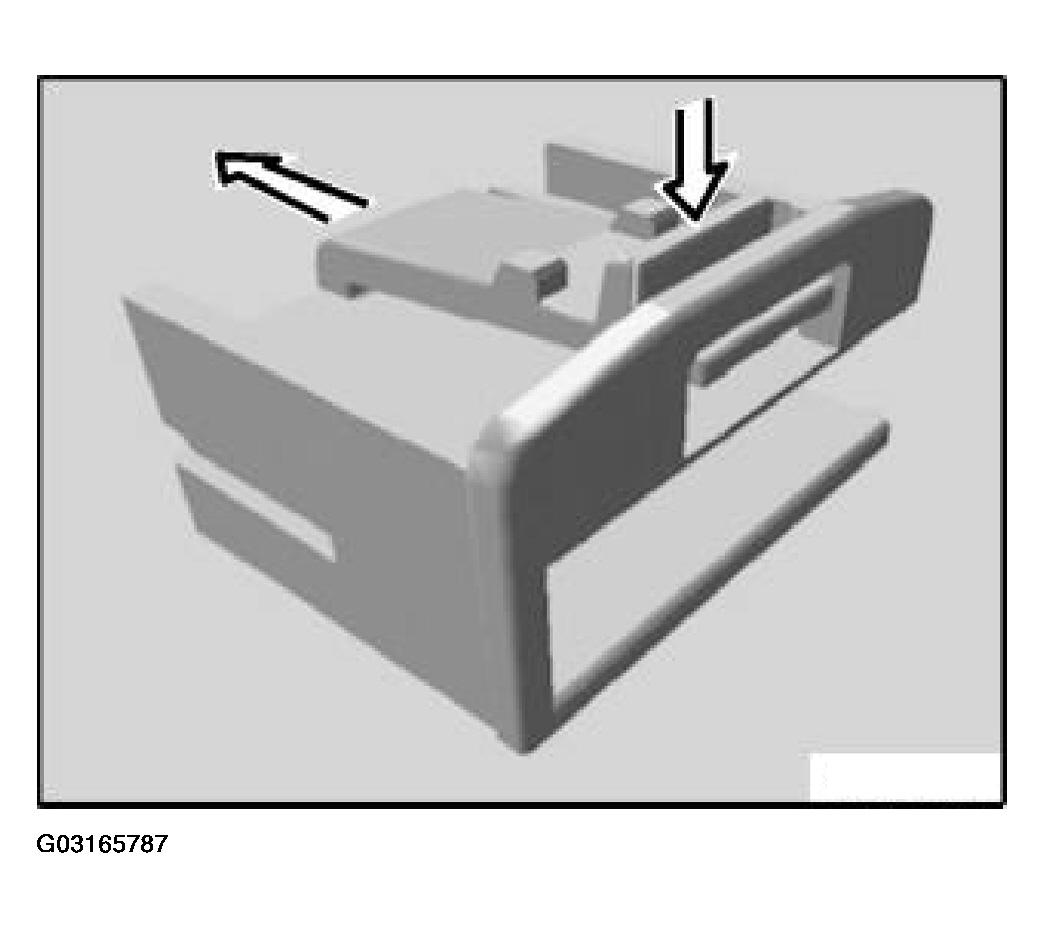

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165787

Courtesy of BMW OF NORTH AMERICA, INC.

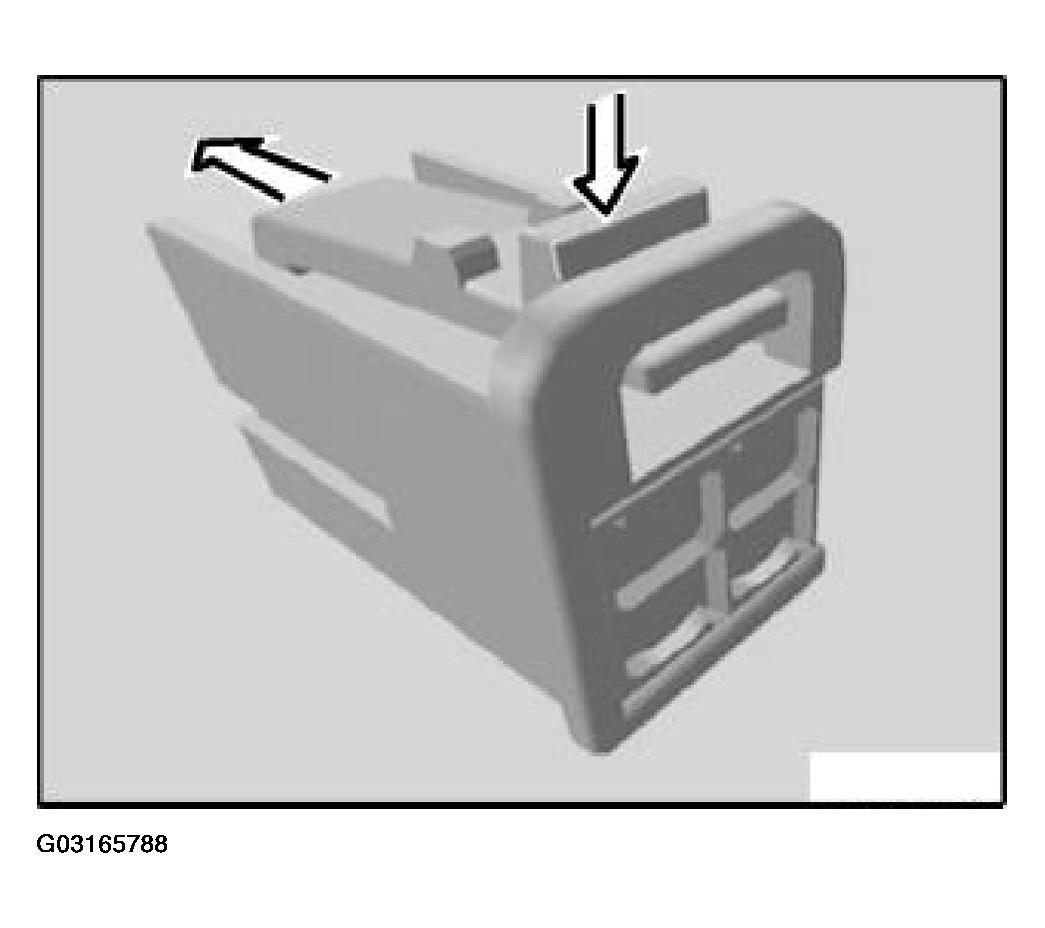

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165788

Courtesy of BMW OF NORTH AMERICA, INC.

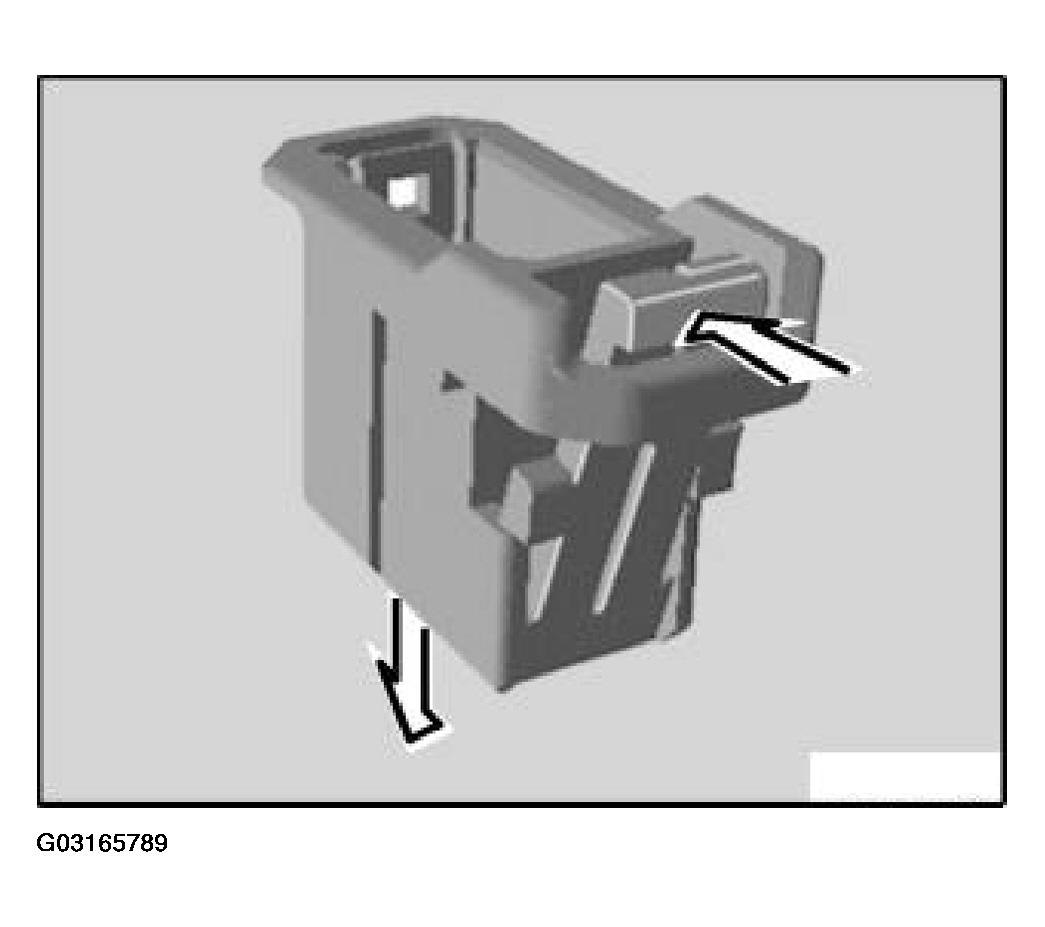

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Pressing Lock And Disconnect Plug Connection In Direction Of Arrow

G03165789

Courtesy of BMW OF NORTH AMERICA, INC.
