Installing the front undershield

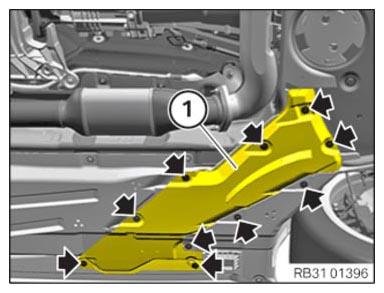

Insert the front undershield (1) and position it.
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
Undershield
screw
Tightening torque
2.6 Nm
Plastic nut
Tightening torque
2.6 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
