Remove spring strut

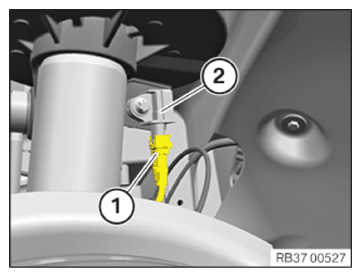

Unlock and disconnect the plug connection (1) on the vertical acceleration sensor (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

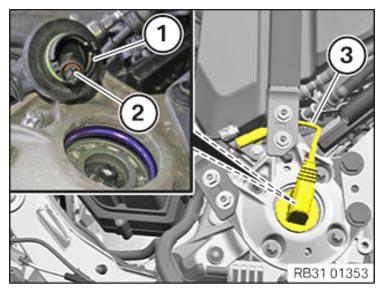

Detach the rubber grommet with the retaining ring (1) from the spring strut support bearing.
Detach the connector (2) of the adapter cable (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Secure component against falling.
