Test 15 Lock Off / Lock On
WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
This function is preset to Lock ON when the test function is switched on. To change over, button must be held down while selecting.
The display then switches every 3 seconds from L ON to L OFF.
Once desired status is reached, release the button.
Test 00 Termination of cluster diagnosis (test function) and return to normal operation.

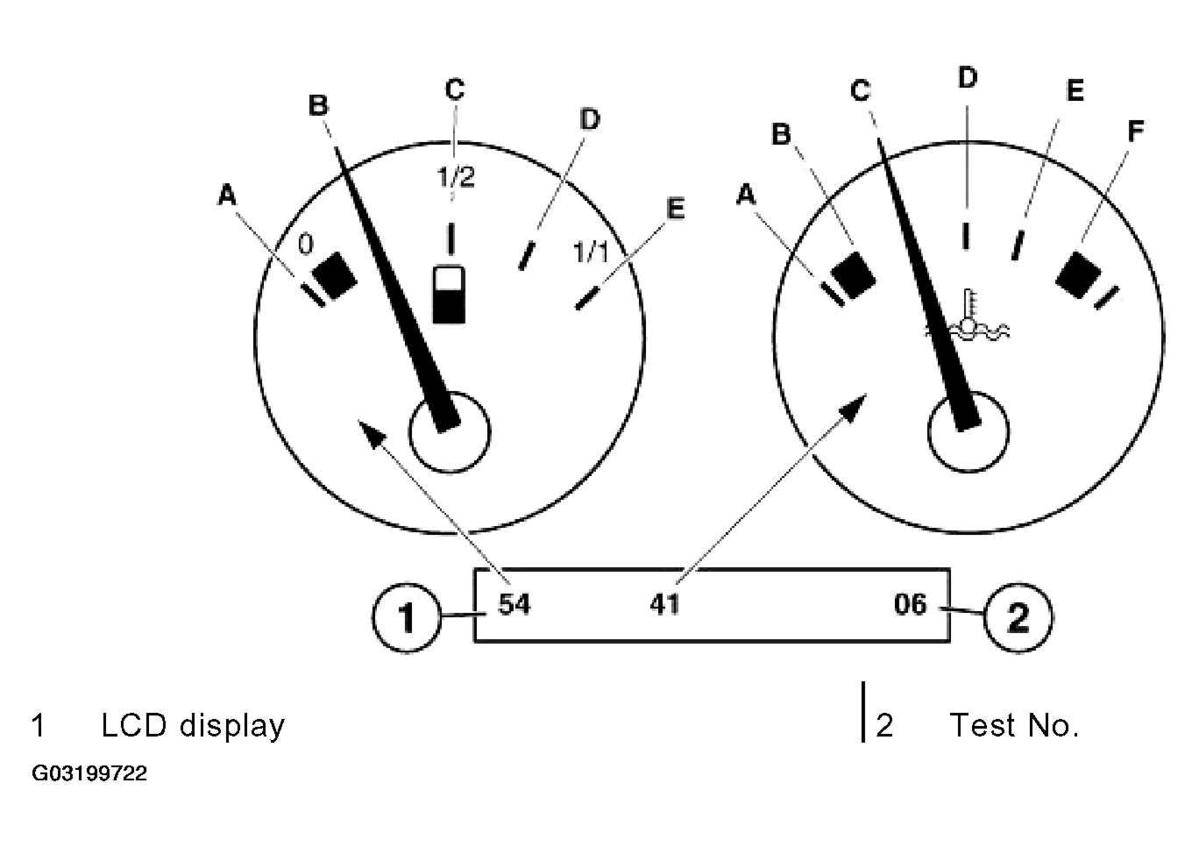

DETERMINING HEX VALUE DISPLAY CHART
| Fuel-gauge setting | Hex value |
|---|---|
| 1st Dash A | 0d |
| End of spare | 37 |
| 2. Dash B | 54 |
| 3. Dash C | 90 |
| 4. Dash D | c4 |
| 5. Dash E (full) | f0 |
| Temp.-pointer setting | Hex value |
| 1st Dash A | ce |
| 2. Dash B | 6d |
| 3. Dash C | 5c |
| 4. Dash D (centre) | 4f-23 |
| 5. Dash E | 1e |
| 6. Dash F | 18 |
