Installing loading edge trim

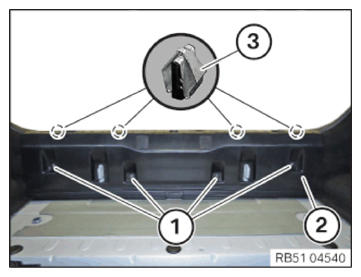

Insert the loading edge trim (2) from the top at the clamps (3) and clip it in.
Mount the expanding rivets (1) .
Position the edge protection of the trunk lid above the loading edge trim (2) .
