Remove left backrest side section
Remove armrest side section

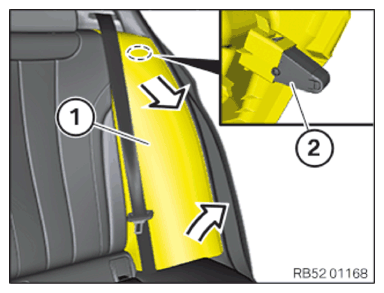

- Grip behind backrest side section (1)
from above and unclip backrest side section (1)
to the front from detent (2)
.
- Guide out the backrest side section (1)
from the rear seat in arrow direction and remove.
