Removing and installing/replacing engine compartment lock

• Removing luggage compartment well

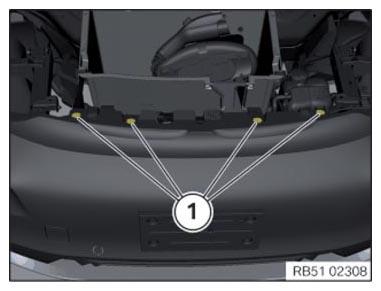

Unscrew the screws (1).

Slightly raise top bumper cover carefully.

Tightening torque 51 11 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

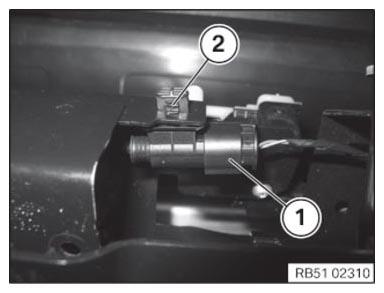

Unfasten plug connection (1) and disconnect.

Release holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

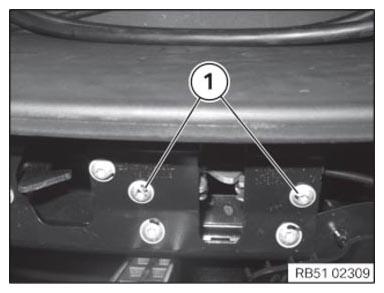

Unscrew the screws (1).

Tightening torque 51 23 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

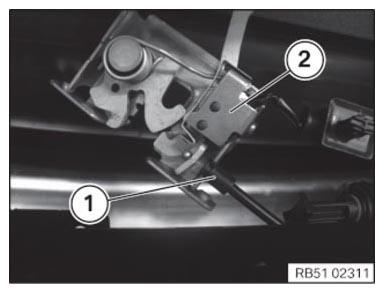

Detach cable (2) and remove lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.
