Wire pull handle with suction element

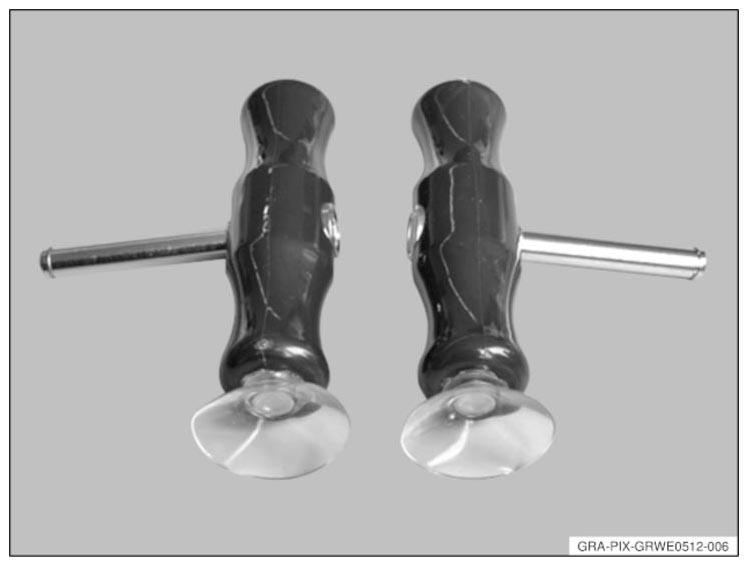

G15018419Courtesy of BMW OF NORTH AMERICA, INC.

Order number:  81 43 2 326 501

Advantages of the new pull handle:

Pull handles can be secured with suction cups to the vehicle glass or body during the individual operations. This prevents damage to the paint.

Scope of delivery:

A set contains two wire pull handles.

NOTE: The wire required for the cutting out of the vehicle glass is ordered using the order number 83 192 150 267, see "applicable BMW parts catalogue".

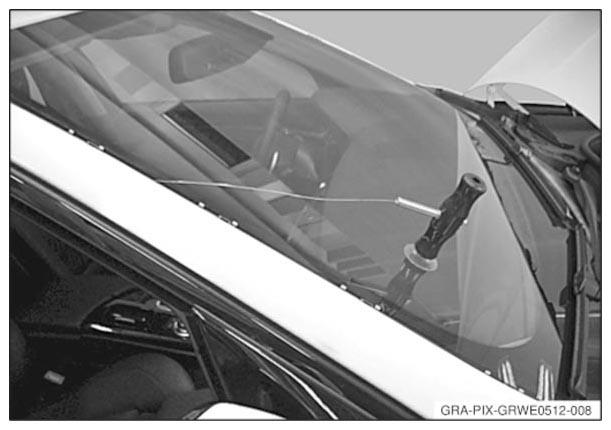

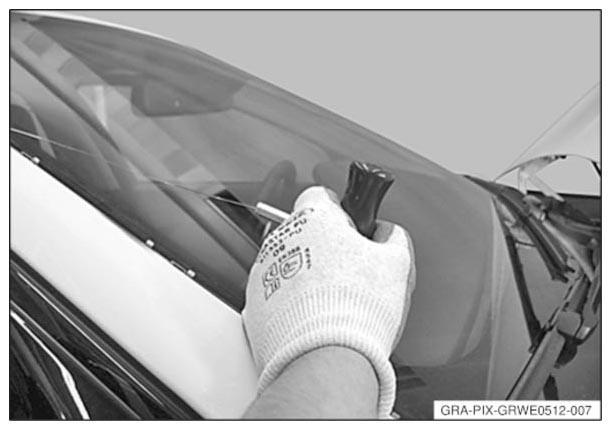

Example application:

G15018420Courtesy of BMW OF NORTH AMERICA, INC.
G15018421Courtesy of BMW OF NORTH AMERICA, INC.
