Electronic Controller

A solid state electronic computer located in passenger compartment. Receives wheel speed signals from both sensors, compares signals and, when difference exceeds predetermined amount, transmits signal to ignition system.

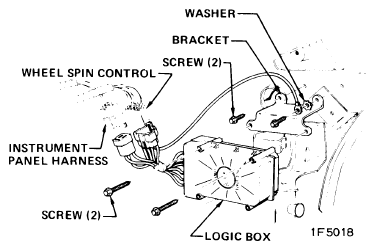

Fig 1: Controller Installation
G09333116Courtesy of GENERAL MOTORS COMPANY
