Solenoid Windings Test: Notes

NOTE: Tests are performed with all leads disconnected. Complete tests in minimum amount of time to prevent overheating solenoid.

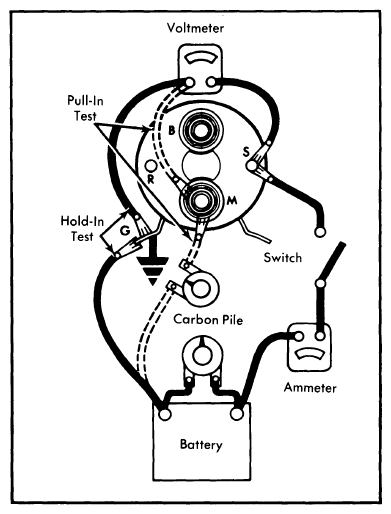

Fig 1: Solenoid Winding Test Connections
G09348450Courtesy of GENERAL MOTORS COMPANY
