Circuit Check - Non-Turbo

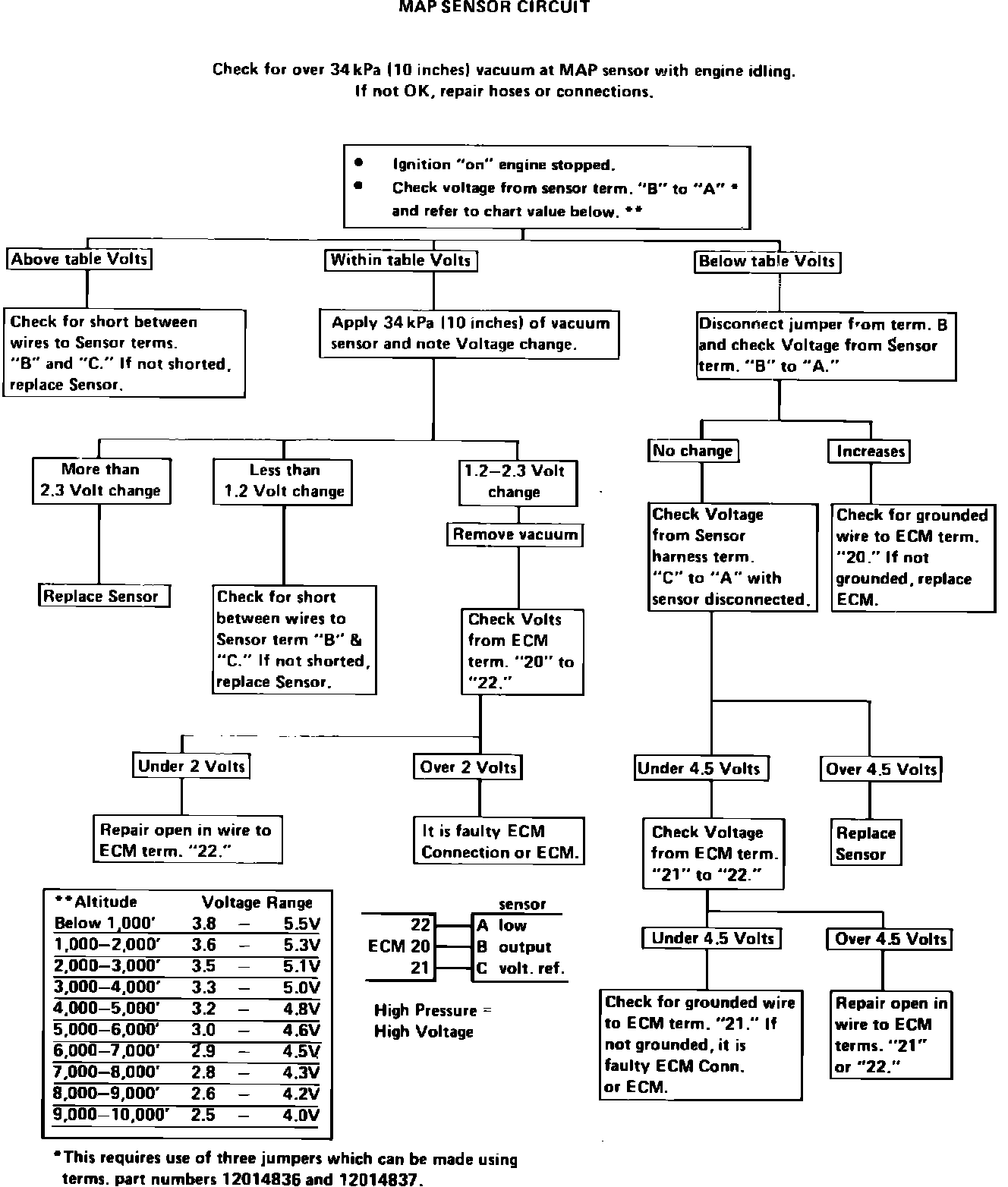

Fig. 8 MAP sensor diagnostic chart. All models with MAP sensor exc. carbureted V6-231/3.8L w/turbocharger (use this chart with EST diagnostic & performance charts):
