Overhaul - 200C: Identification

Transmission model may be identified by the production code number, located on an identification plate attached to right side of transmission case, near modulator. Number consists of a year code, 2 letter model code, and a build date code. Transmission model codes are listed in the following table.

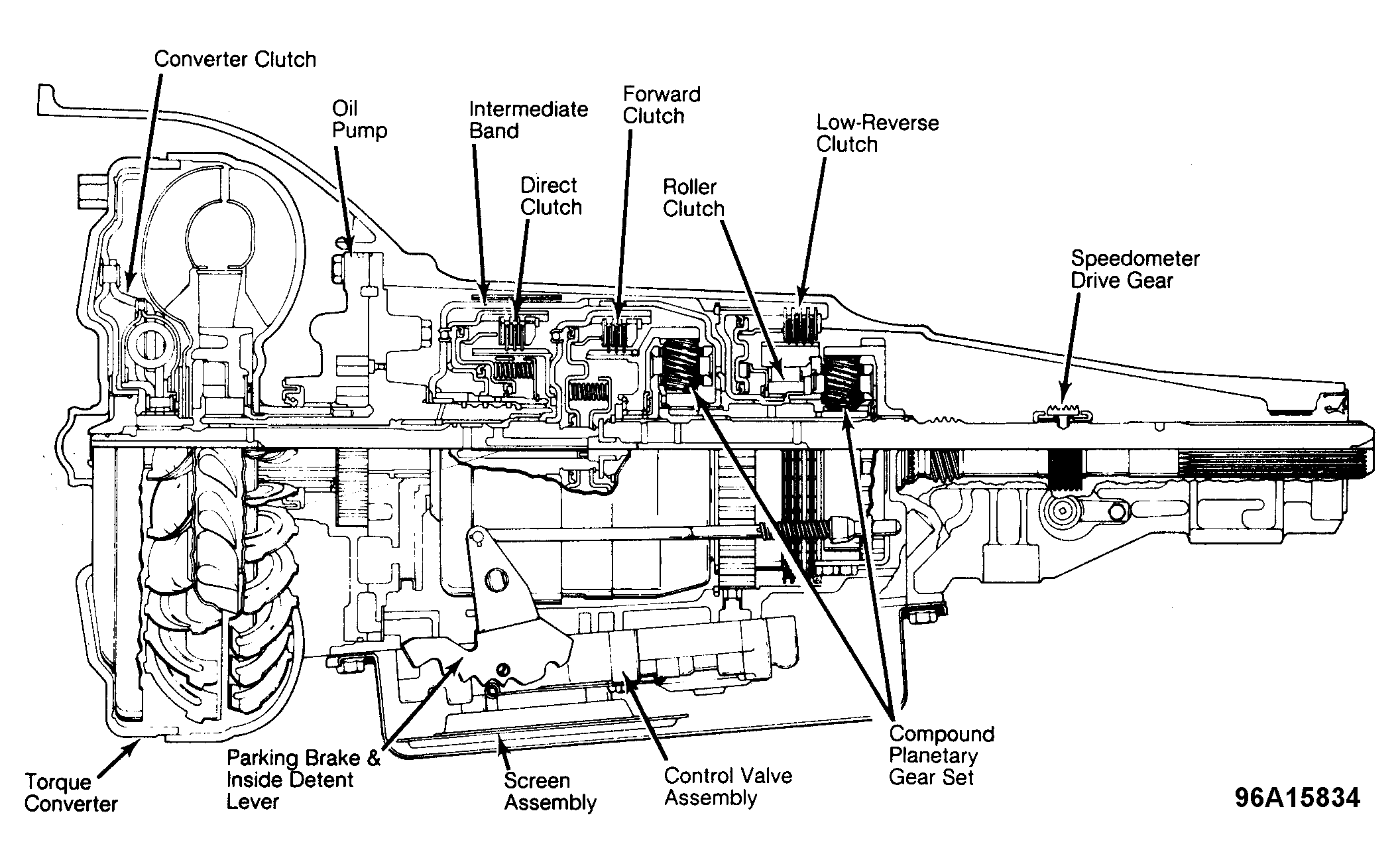

Fig 1: Sectional View of Turbo Hydra-Matic 200C Automatic Transmission
G96A15834Courtesy of GENERAL MOTORS CORP.
