Computers and Control Systems: Locations

Fig. 6 Emission Control System Components. V6 Diesel:

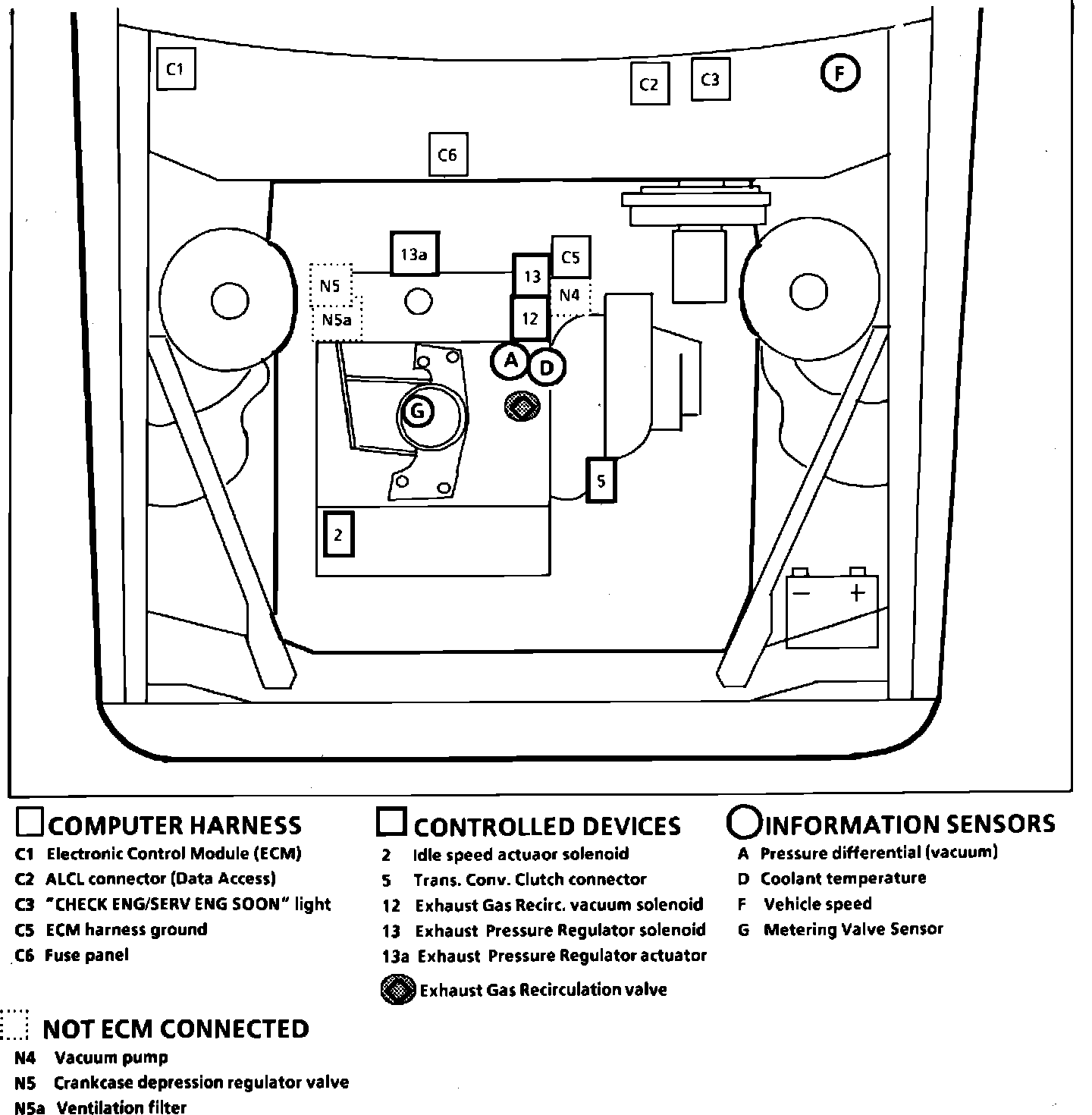

Fig. 28 Emission Component Location. 1985 Models W/V6-262/4.3L, Diesel:
