1985-87 V6-181/3.0L Carbureted Models

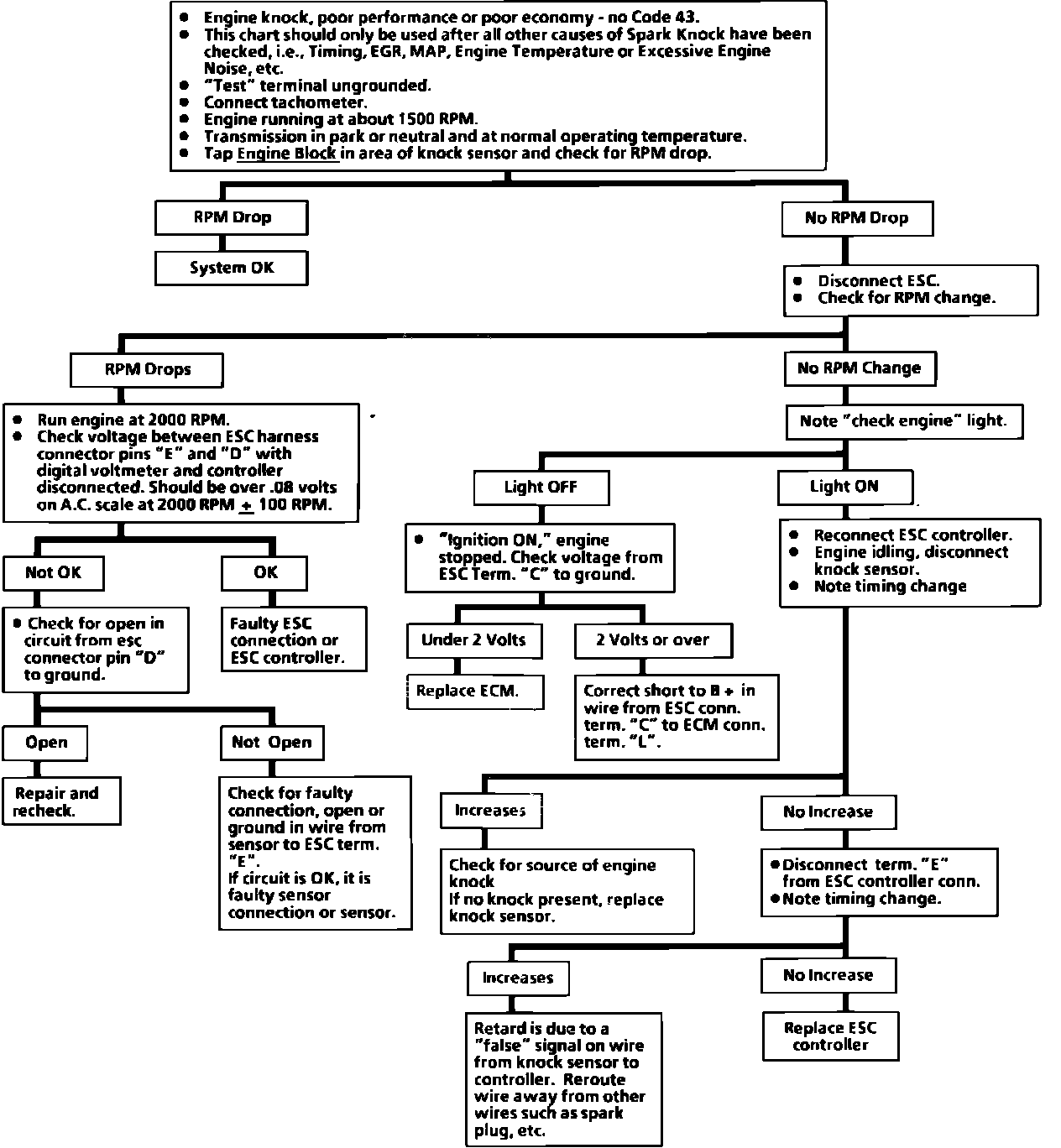

Fig. 6b ESC performance chart (1985-87 V6-181/3.0L carbureted models):
