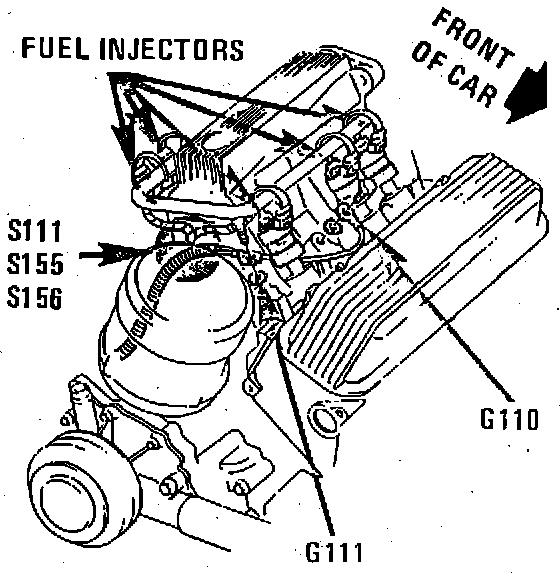

Fuel Injectors

RH Front Of 3.:

Top Of Engine, At Each Intake Port

Applicable to: 8L Engine. Electra & 98
