ECM Terminal Identification

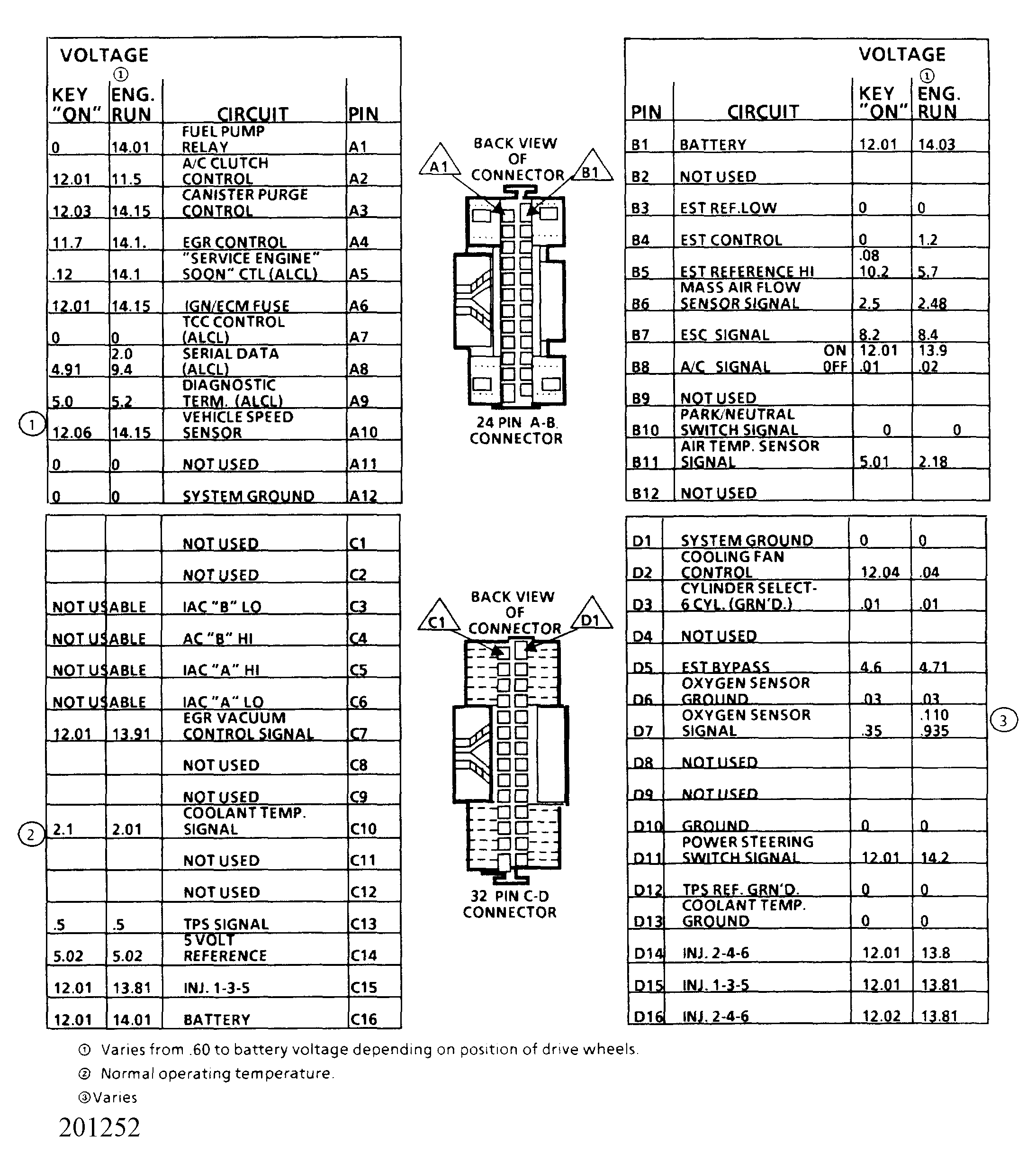

Fig 1: Port Fuel Injection ECM Terminal Identification 3.0L
G201252

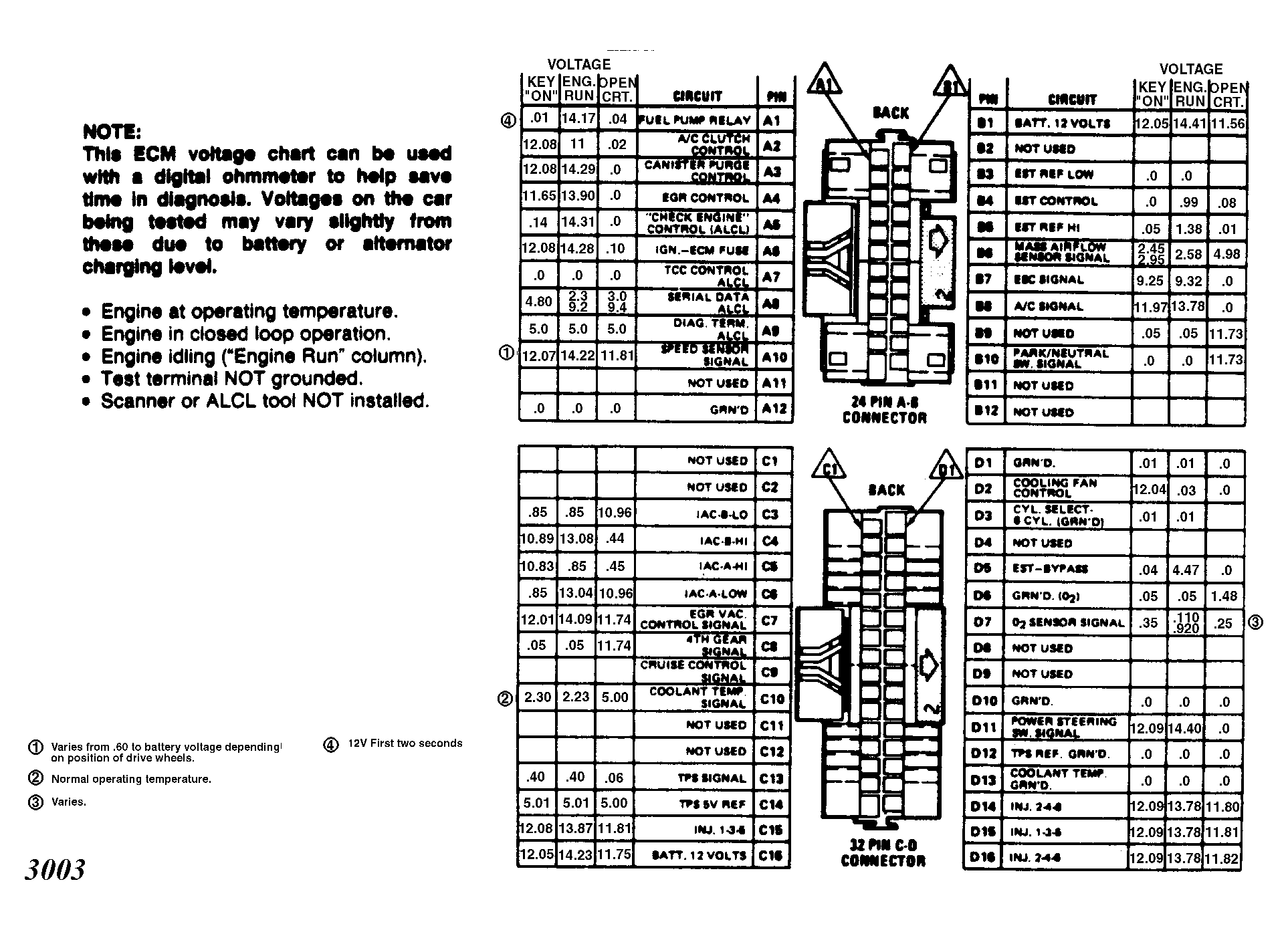

Fig 2: Port Fuel Injection ECM Terminal Identification 3.8L
G3003

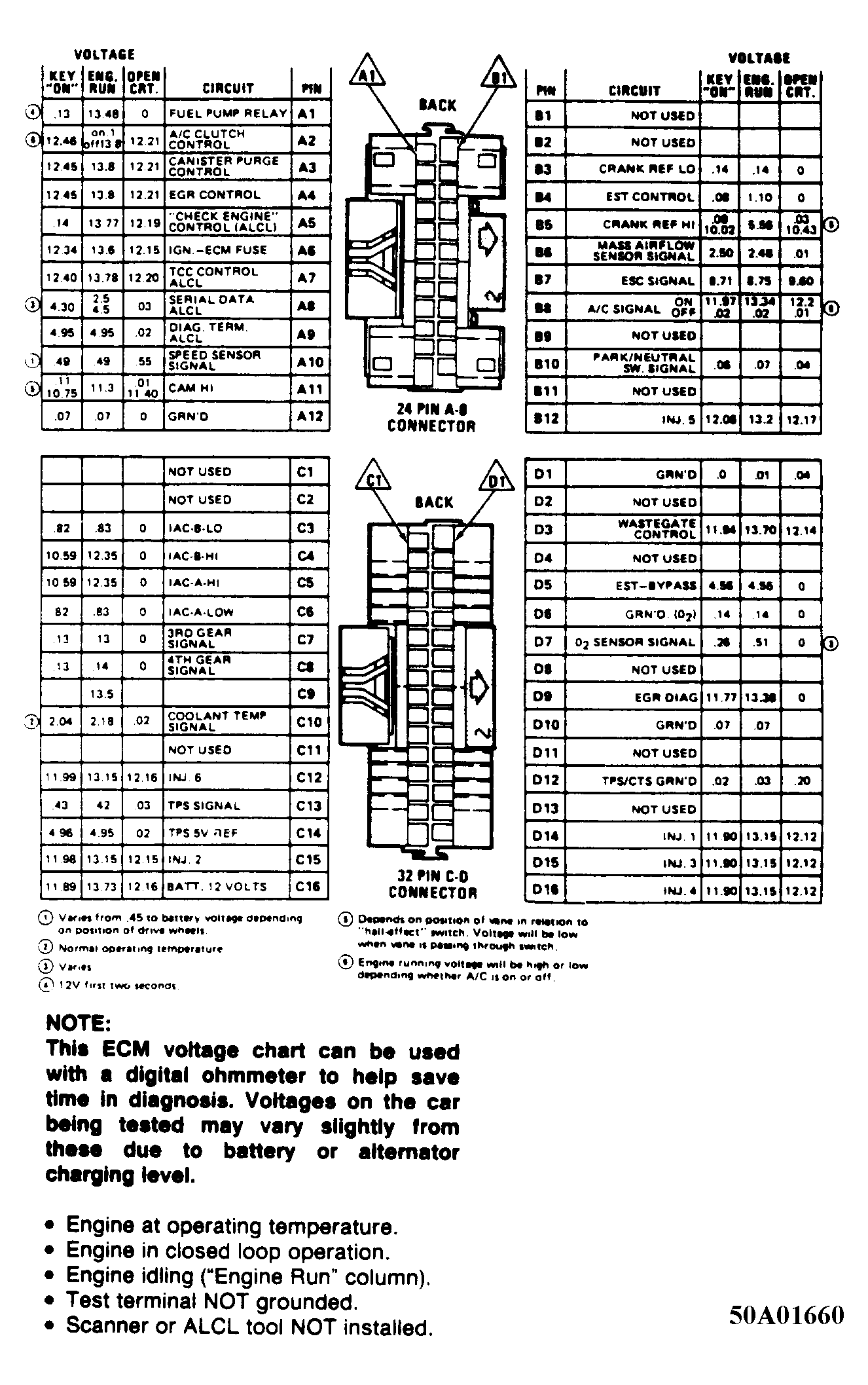

Fig 3: Port Fuel Injection ECM Terminal ID 3.8L Turbo
G50A01660
