Anti-Lock Brake System Testing Circuit

WARNING: This page is about a different car, the 1988 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

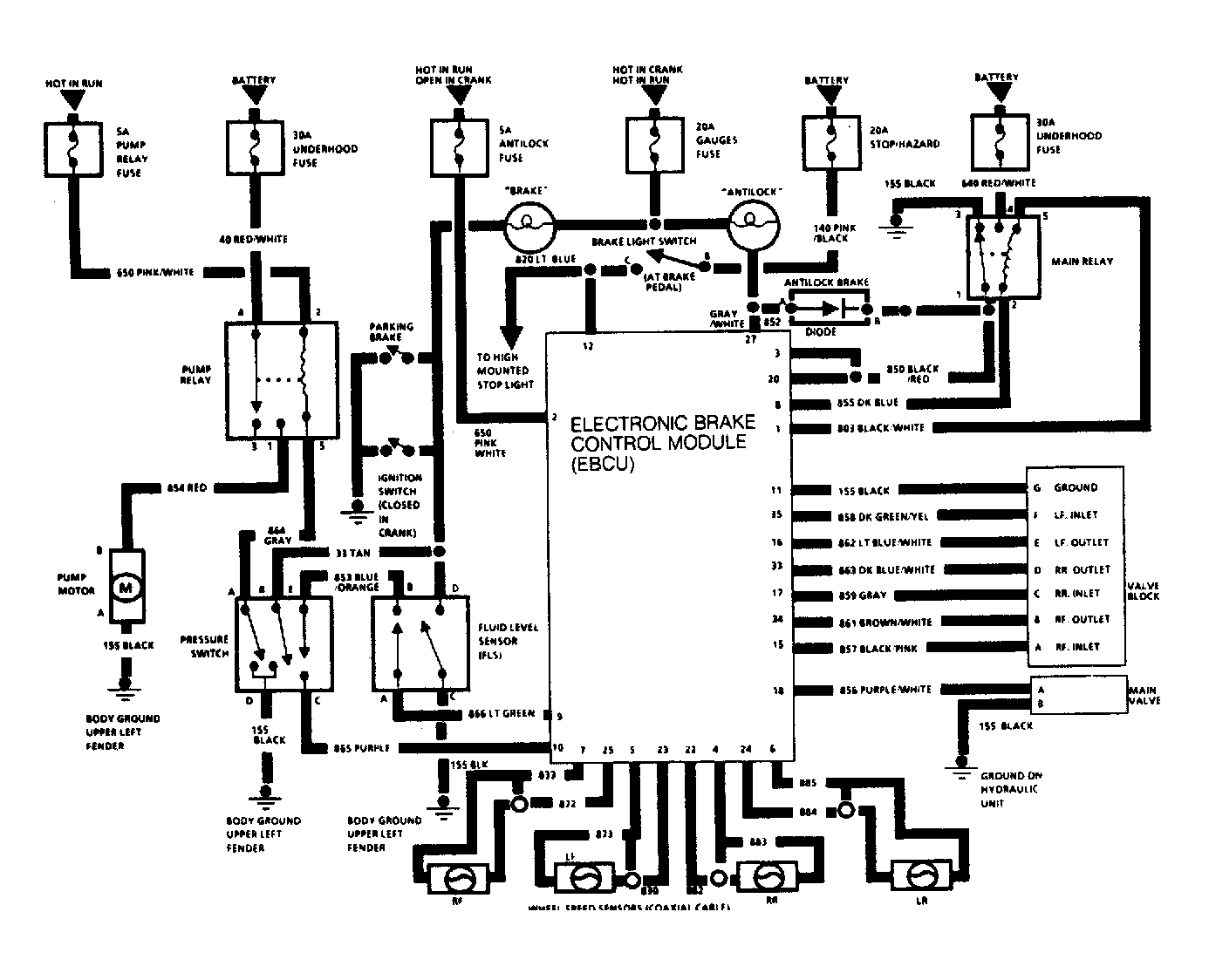

Fig 1: Anti-Lock Brake System Testing Circuit
G56075Courtesy of GENERAL MOTORS CORP.
