ECM Terminal Identification
Fig 1: ECM Terminal Pin Voltage (1986 3.8L VIN A)

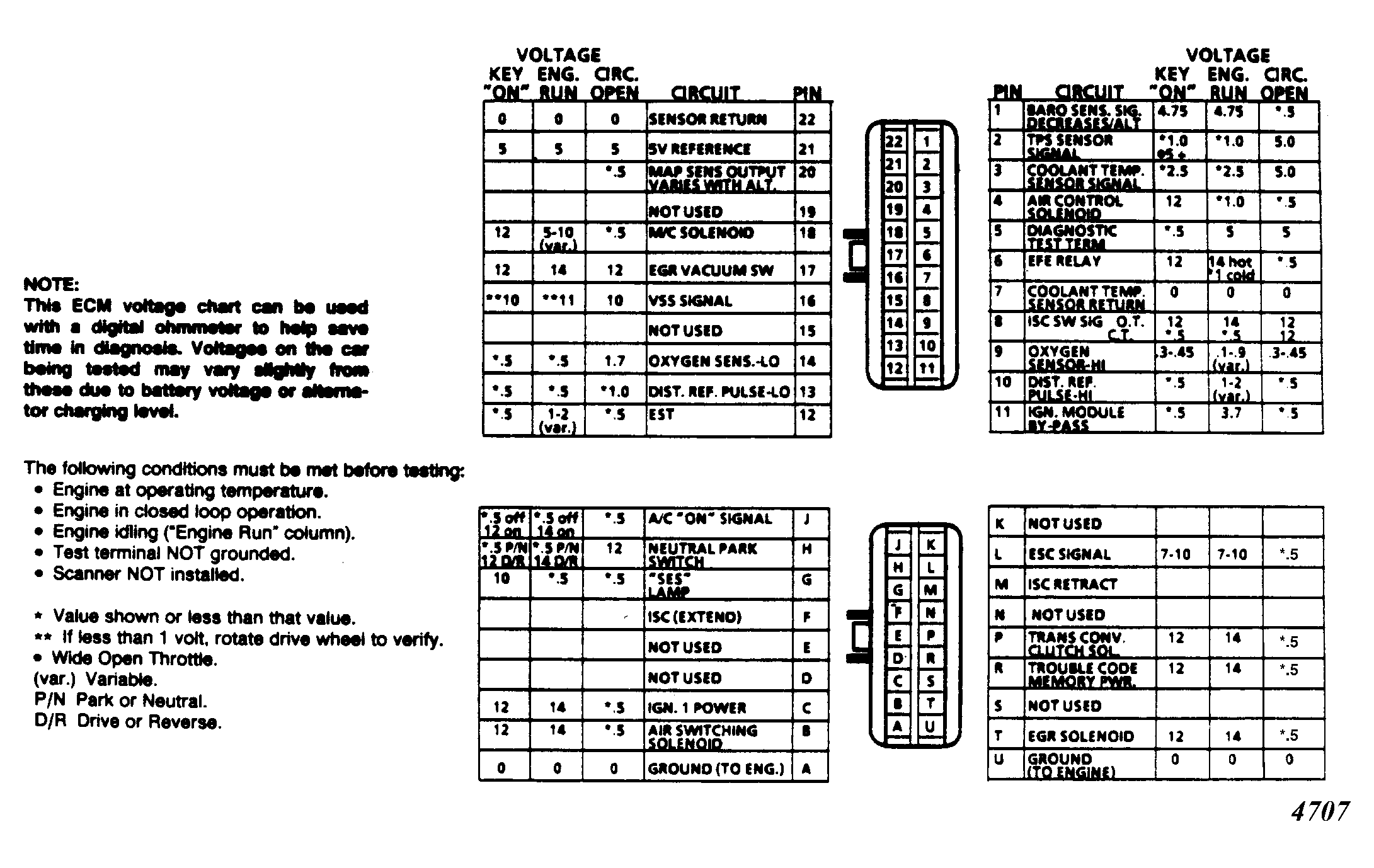

Fig 2: ECM Terminal Pin Voltage (1987 3.8L VIN A)
