Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cruise Control Module | Under left side of dash, above accelerator pedal. |
| Electronic A/C Module | To left of blower motor on right side of firewall. |
| Electronic Control Module (ECM) | Behind right kick panel. |

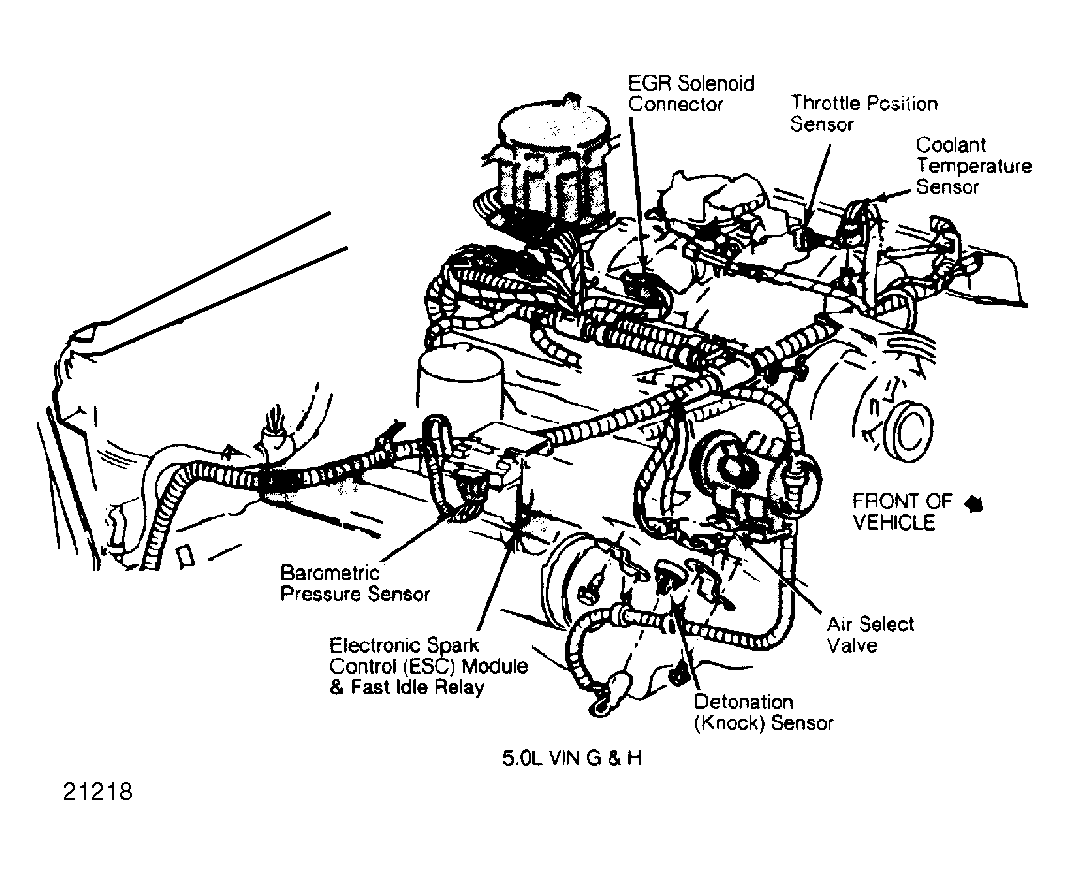

| Electr. Spark Control (ESC) Module | On bracket at top of right front wheelwell. See Figure & 6. |
| Multi-Function Chime Module | Behind left side of dash, at convenience center. |
| Theft Deterrent Controller | Under left side of dash, near kick panel. |

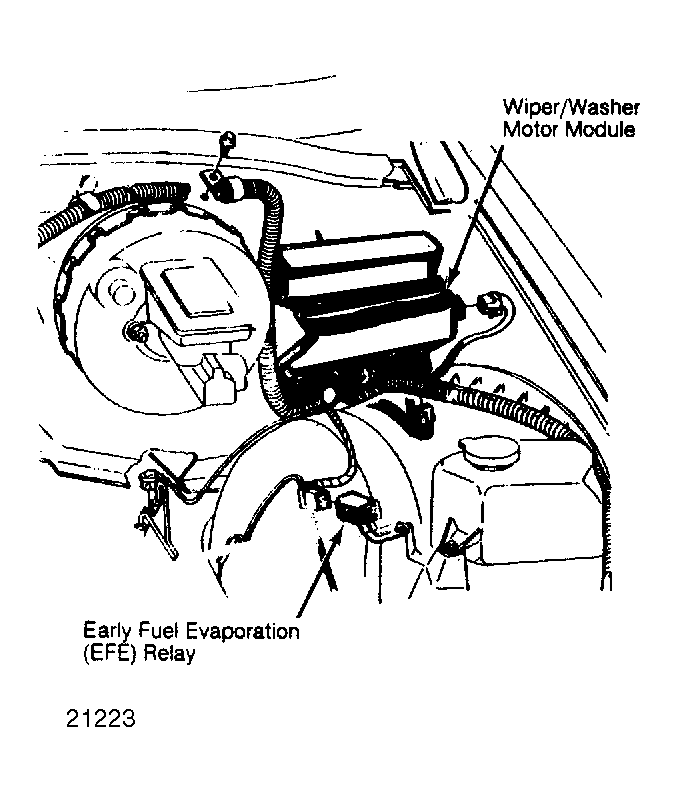

| Wiper/Washer Motor Module | On upper left corner of firewall in engine compartment. See Figure. |
