A/C Compressor Control Relay

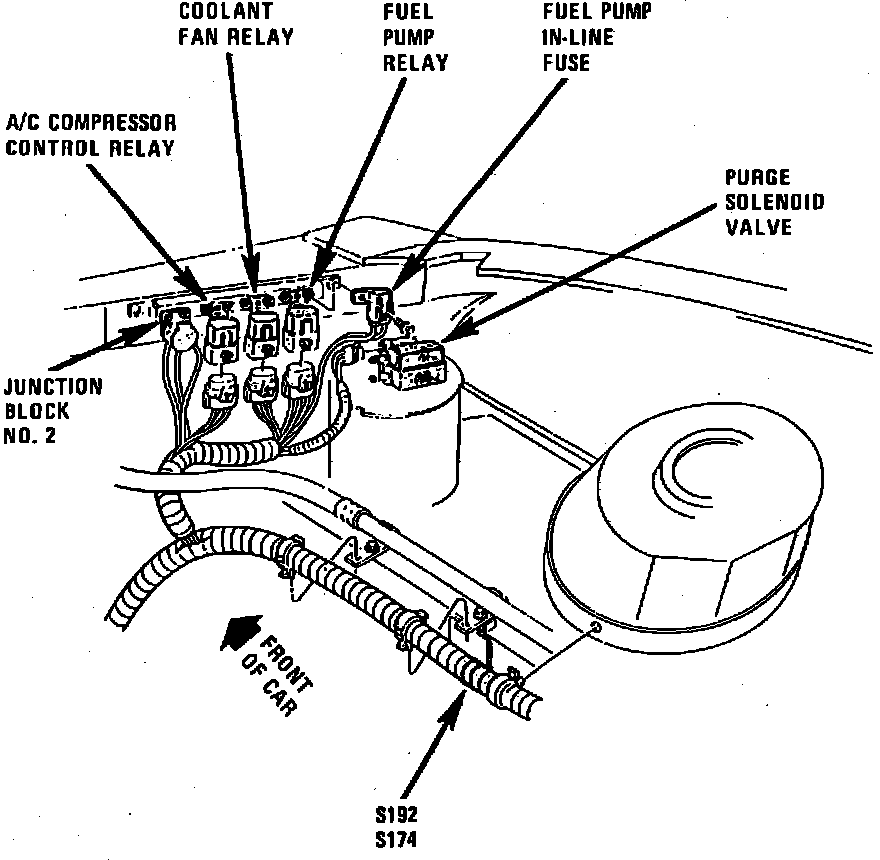

RH Front Of V6-173/2.8L:






The A/C Compressor Control Relay is located on the RH front of engine compartment on bracket.
