With Speed Density Update

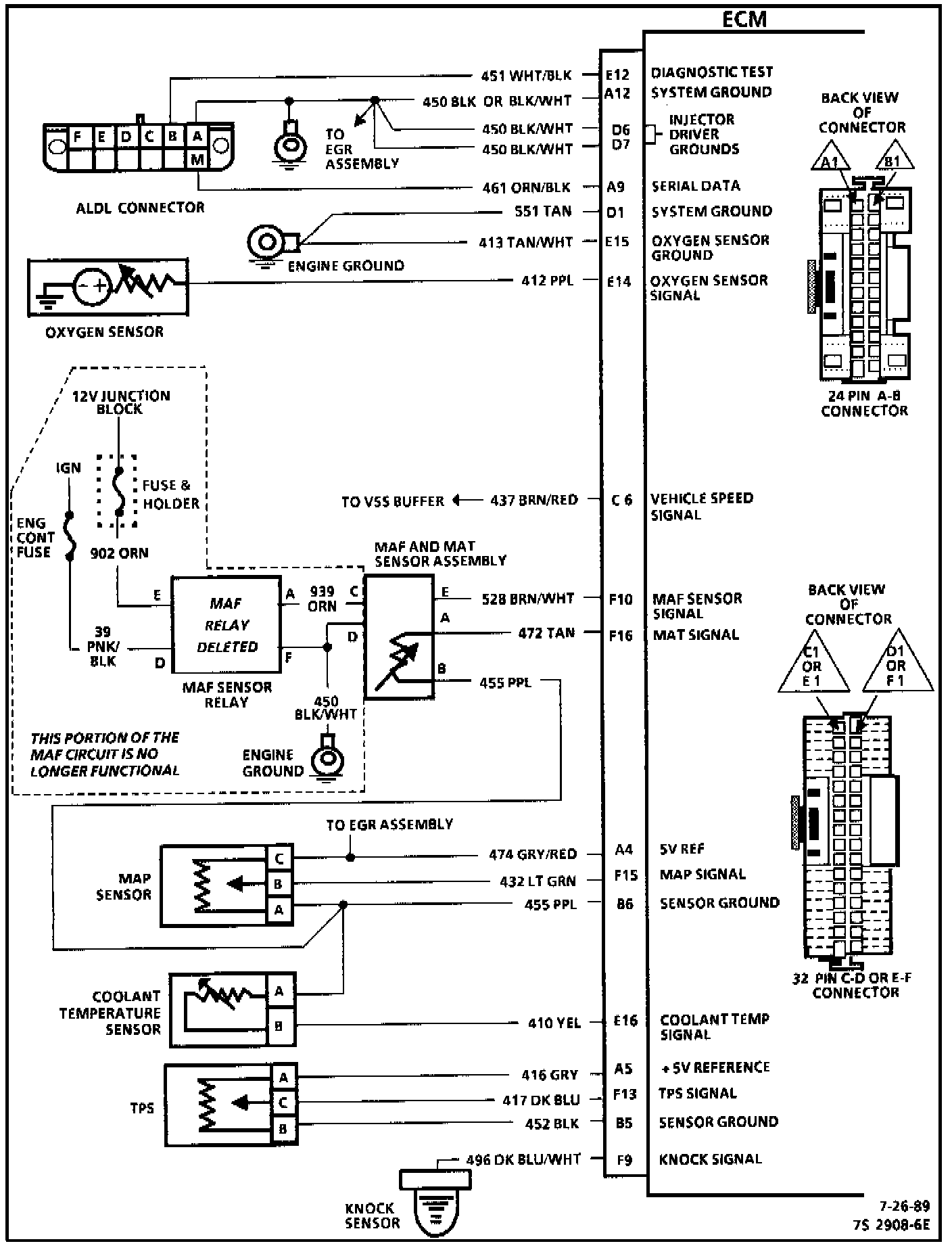

ECM Connector View (1of2):



ECM Wiring Diagram With Speed Density Update:



ECM Wiring Diagram (3 Of 3):
