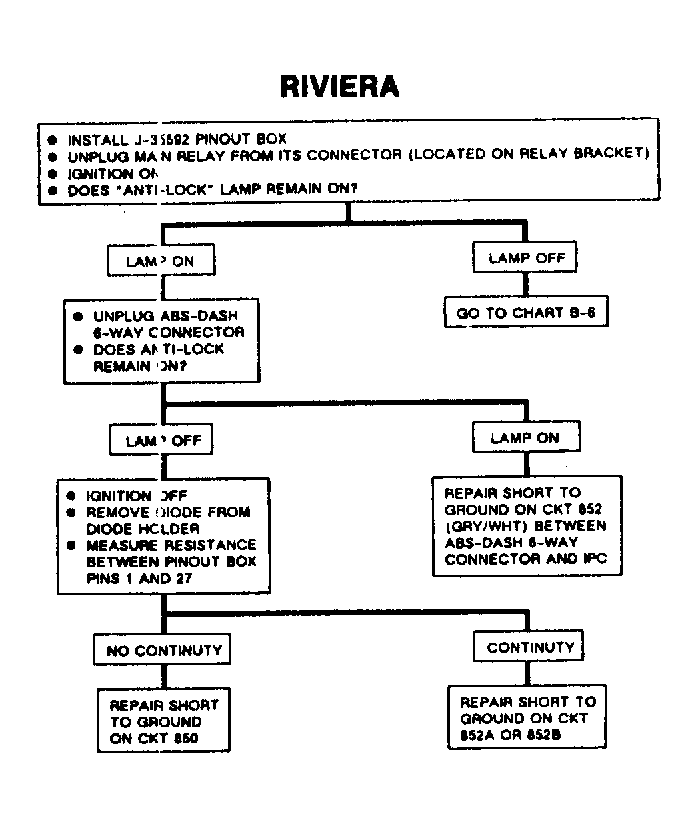

Chart B5 - Anti-Lock Light Circuit: Diode
When main relay is enabled, power is provided to EBCM on pins No. 3 and 20 on circuit No. 850. When voltage is present on this circuit, the diode protects EBCM pin No. 27 and ANTI-LOCK light from overvoltage. If diode shorts, code 61 should be set.
