Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

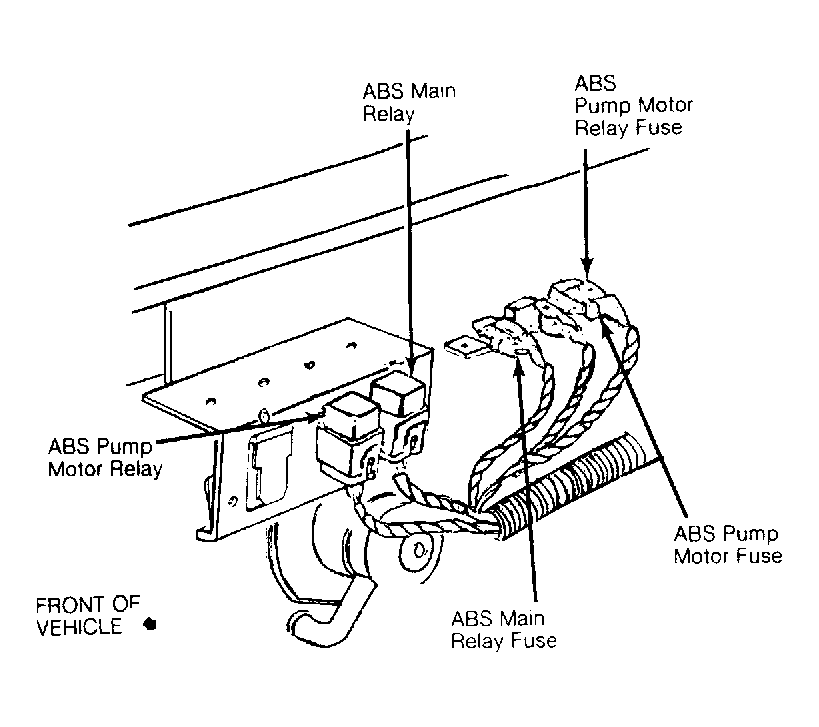

| ABS Pump Motor Fuse | Center of firewall. See Figure . | |
| ABS Pump Motor Relay Fuse | Center of firewall. See Figure . | |
| ABS Main Relay Fuse | Front of firewall. See Figure . | |
| ABS Controller Fuse | Behind dash, to right of steering column. | |
| Circuit Breakers | ||
| Headlights (Toronado) | In fuse block. | |
| High Beam (Reatta & Riviera) | In fuse block. | |
| Horn/Defogger | In fuse block. | |
| Low Beam (Reatta & Riviera) | In fuse block. | |
| Power Seats | In fuse block. | |
| Power Windows (Toronado) | In fuse block. | |
| Retained Accessory Power | In fuse block. | |
| Fuse Block | ||

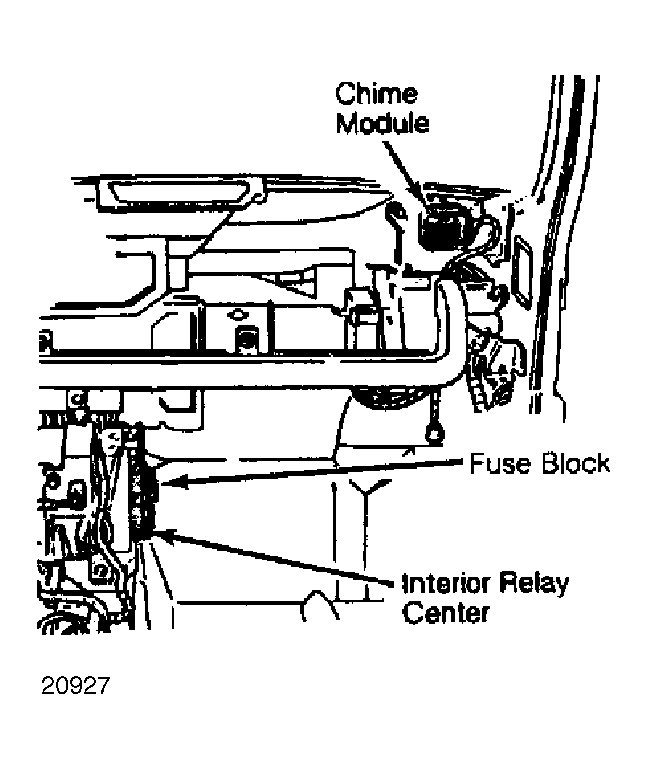

| Reatta & Riviera | Under center of dash, on right front side of console. See Figure . | |

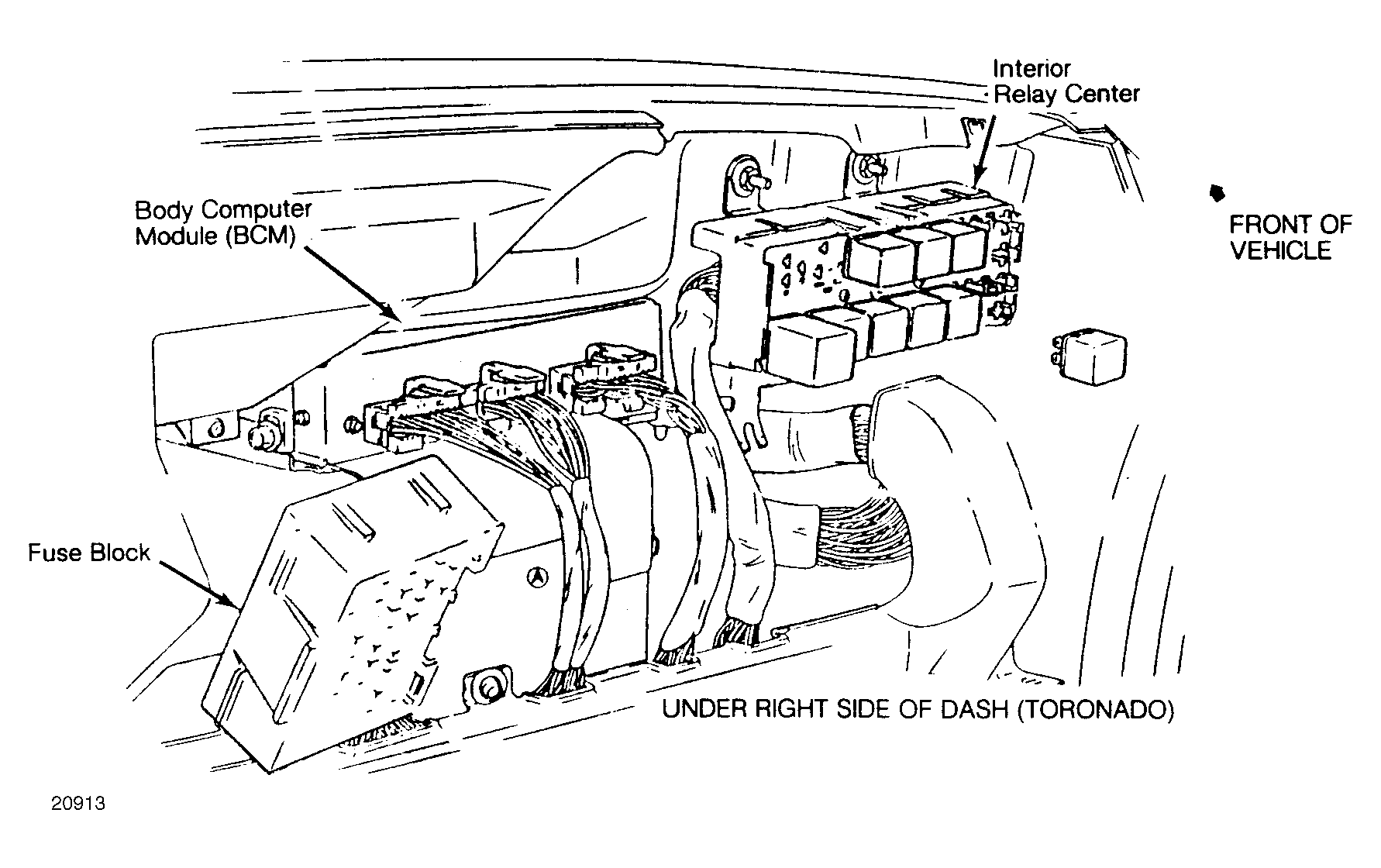

| Toronado | Behind right side of dash, behind glove box. See Figure . | |
| Fusible Links | ||

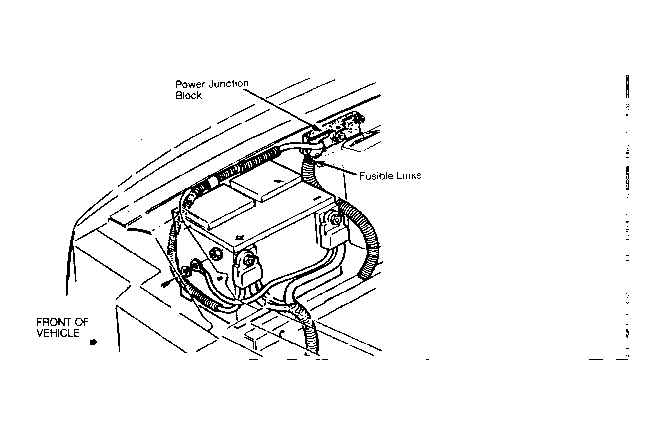

| A (Black - Reatta & Riviera) Underhood Relay Center | In harness, next to junction block on right fender panel. See Figure . | |
| A (Black - Toronado) Power Distribution | In harness, next to junction block. | |
| B (Orange - Riviera) Fuse Block | In harness, next to junction block on right fender panel. See Figure . | |
| B (Reatta - Rust) Fuse Block | In harness, next to junction block on right fender panel. See Figure . | |
| B (Black - Toronado) Fuse Block | In harness, next to junction block on right fender panel. See Figure . | |
| C (Black - Reatta & Riviera) Ignition Switch | In harness, next to junction block on right fender panel. See Figure . | |
| C (Gray - Toronado) Fuse Block | In harness, next to junction block on right fender panel. See Figure . | |
| D (Orange - Toronado) Ignition Switch | In harness, next to junction block on right fender panel. See Figure . | |
| E (Blue - Toronado) Power Module | In harness, next to junction block on right fender panel. See Figure . | |
| E (Blue - Reatta & Riviera) Power Distribution | In harness, next to junction block. | |
| F (Rust - Reatta) Fuse Block | In harness next to junction block on right fender panel. See Figure . | |
| F (Orange - Riviera) Fuse Block | In harness next to junction block on right fender panel. See Figure . | |
| F (Gray - Toronado) ECM | In harness next to junction block on right fender panel. See Figure . | |
| G (Black - Riviera) Fuse Block | In harness next to junction block on right fender panel. See Figure . | |
| H (Orange - Riviera) Fuse Block | In harness next to junction block on right fender panel. See Figure . | |
| H (Black - Toronado) Underhood Relay Center | In harness next to junction block on right fender panel. See Figure . | |
| K (Gray - Toronado) Underhood Relay Center | In harness next to junction block on right fender panel. See Figure . | |
| L (Green - Toronado) Underhood Relay Center | In harness, next to junction block on right fender panel. See Figure . | |
| M (Red - Reatta & Riviera) ABS Pump Motor | In harness, at junction block. | |
| N (Red - Reatta & Riviera) ABS Main Relay | In harness, at junction block. | |
| P (Orange - Reatta, Riviera) Interior Relay Center | In harness next to junction block on right fender panel. See Figure . | |
| In-Line Fuses | ||

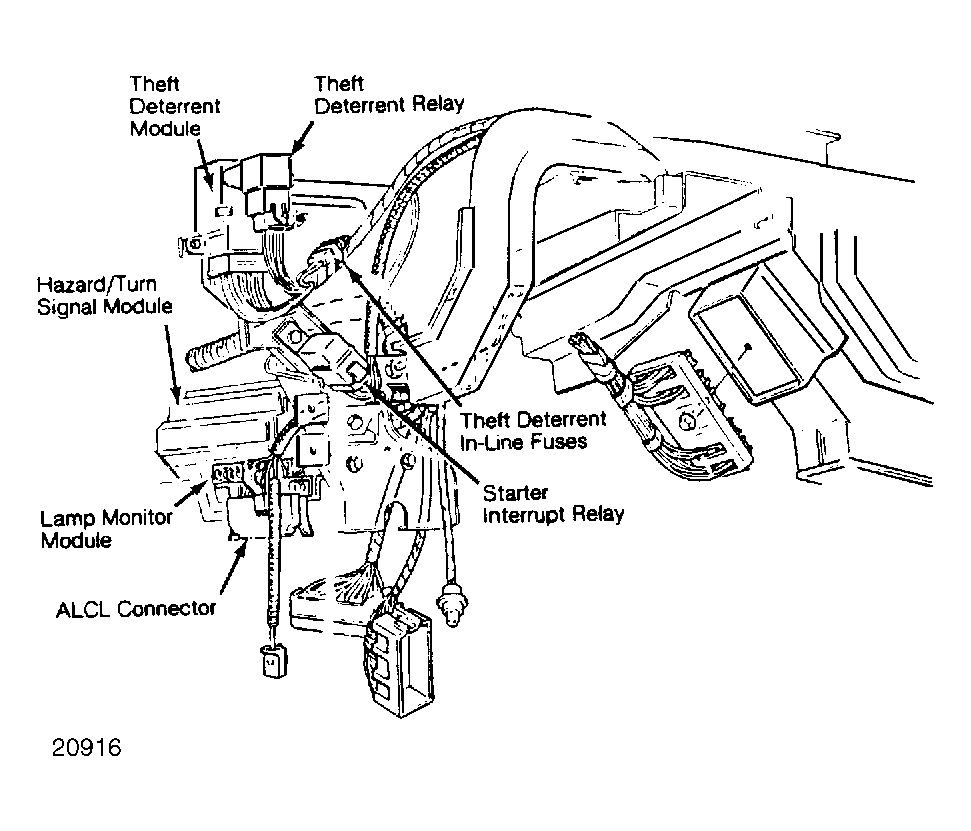

| A, B & C (Toronado) | Behind left side of dash, left of steering column. See Figure . | |
| A (Reatta & Riviera) | Behind left side of dash, left of steering column. See Figure . | |
