System Component Locations

WARNING: This page is about a different car, the 1988 Cadillac Seville and 1988 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

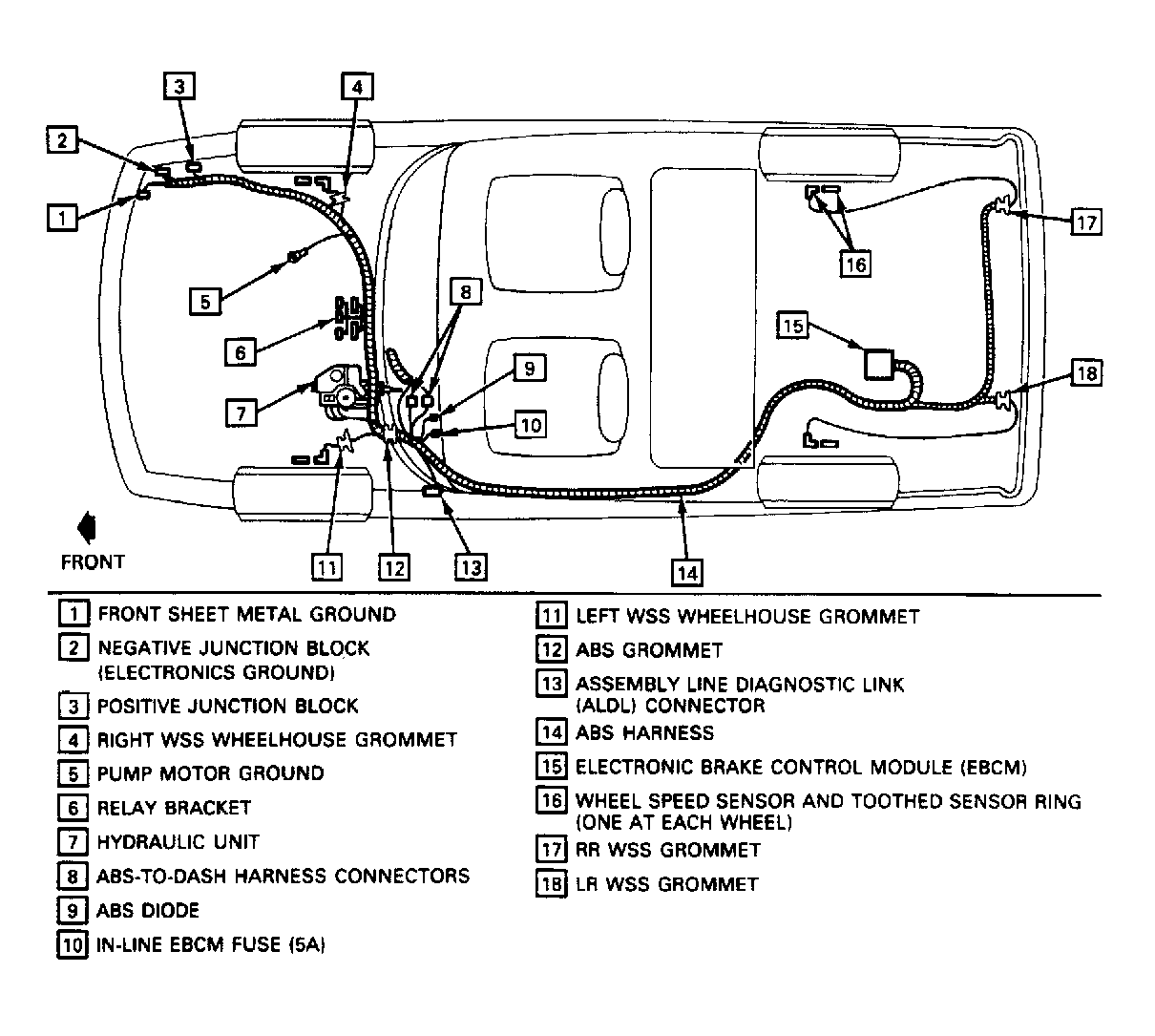

Fig 1: Anti-Lock Brake System Component Locations
G53929
Fig 2: Anti-Lock Brake System Relay Locations
G56116
